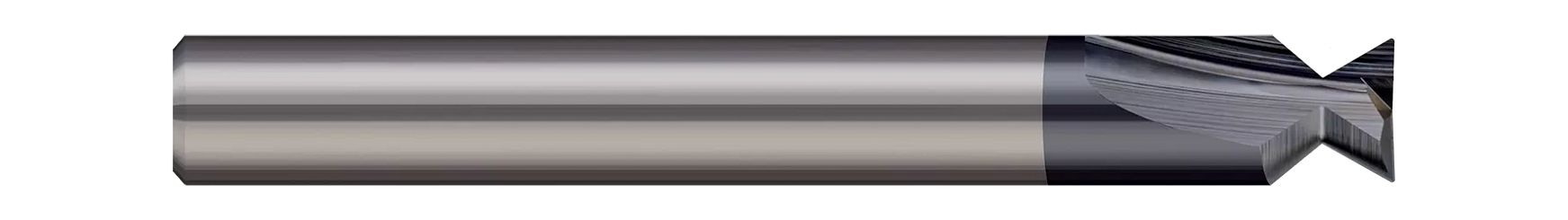

Harvey Tool 811416-C3 | 1/4" Diameter x 1/8" LOC x 1/4" Shank 60 Degree Included Angle AlTiN Coated Carbide Dovetail Cutter

$117.90
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2500"
Neck Diameter (Inch):
7/64"
Neck Diameter (Decimal Inch):
0.1090"
Included Angle:
60 Degree
Number of Flutes:
2
Length of Cut (Decimal Inch):
0.1250"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
C3
SKU:
25174983
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
811416-C3

With its reduced neck for long reach machining operations, and its corner radius profile for improved strength, this solid carbide offering of Dovetail Cutters is built to last.

  • Reduced neck for long reach machining
  • Corner radius for improved strength
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.2500" (1/4)
Neck Diameter (Inch)0.1090" (7/64)
Length of Cut (Inch)0.1250" (1/8)
Overall Length (Inch)2.0000" (2)
Number of Flutes2
Corner Radius0.0030"
Angle per Side30
Included Angle60
Shank Diameter (Inch)0.2500" (1/4)
Coating/FinishC3

Technical Files

Safety Data Sheet North America (SDS NA)

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
