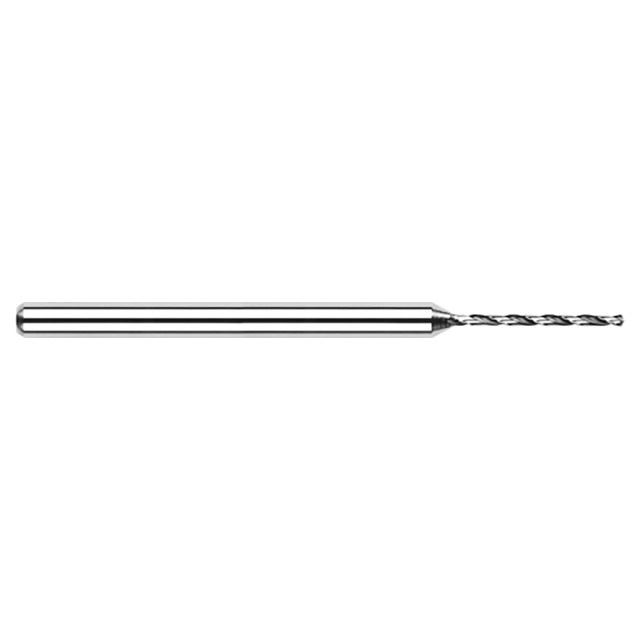

Product Specifications
| Drill Diameter (Inch) | 5/64" |
| Drill Diameter (Decimal Inch) | 0.0781" |
| Flute Length (Inch) | 3/4" |
| Flute Length (Decimal Inch) | 0.7500" |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.0000" |
| Point Angle | 130 Degree |
| Number of Flutes | 2 |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Metric (Yes/No) | No |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Finish/Coating | Uncoated |
| Double Ended (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Through Coolant | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Size (Inch):
5/64"
Size (Decimal Inch):
0.0781"
Drill Point Angle:
130 Degree
Flute Length (Inch):
3/4"
Flute Length (Decimal Inch):
0.7500"
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Finish/Coating:
Uncoated
Through Coolant:
No
Material:
Carbide
Ships:
From Partner Facility
