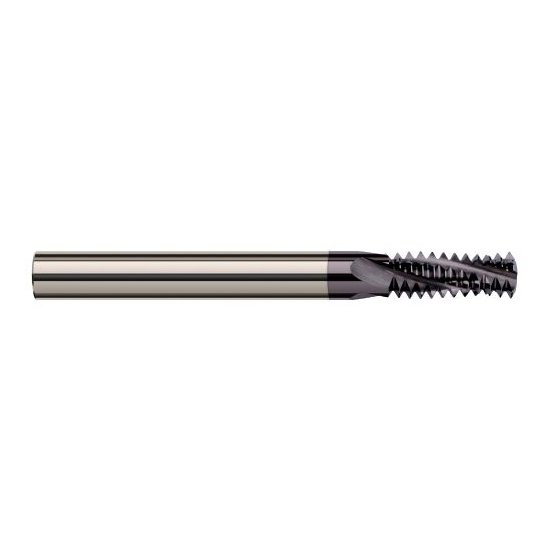

Features
- Designed for threading hardened steels 46-68 Rc
- Cuts internal and external 60 Degree UN threads
- Mill right hand and left hand threads
- Able to cut larger threads of the same pitch
- Variable helix design reduces chatter and harmonics and produces more accurate threads
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- Select carbide grade for maximum tool life
- Solid carbide
- CNC ground in the USA
Product Specifications
| Size | 3/4-16 |
| Milling Diameter (Decimal Inch) | 0.4950" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Number of Flutes | 4 |
| Length of Cut (Decimal Inch) | 1.2500" |
| Length of Cut (Inch) | 1-1/4" |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (Inch) | 3-1/2" |
| Finish/Coating | AlTiN Nano |
| Material | Carbide |
| Coolant Through (Yes/No) | No |
| Included Angle | 60 Degree |
| Single or Double | Single |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Thread Size (Inch):
3/4-16
Cutter Diameter (Decimal Inch):
0.4950"
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Number of Flutes:
4
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Finish/Coating:
AlTiN Nano
Material:
Carbide
Through Coolant:
No
Ships:
From Partner Facility
