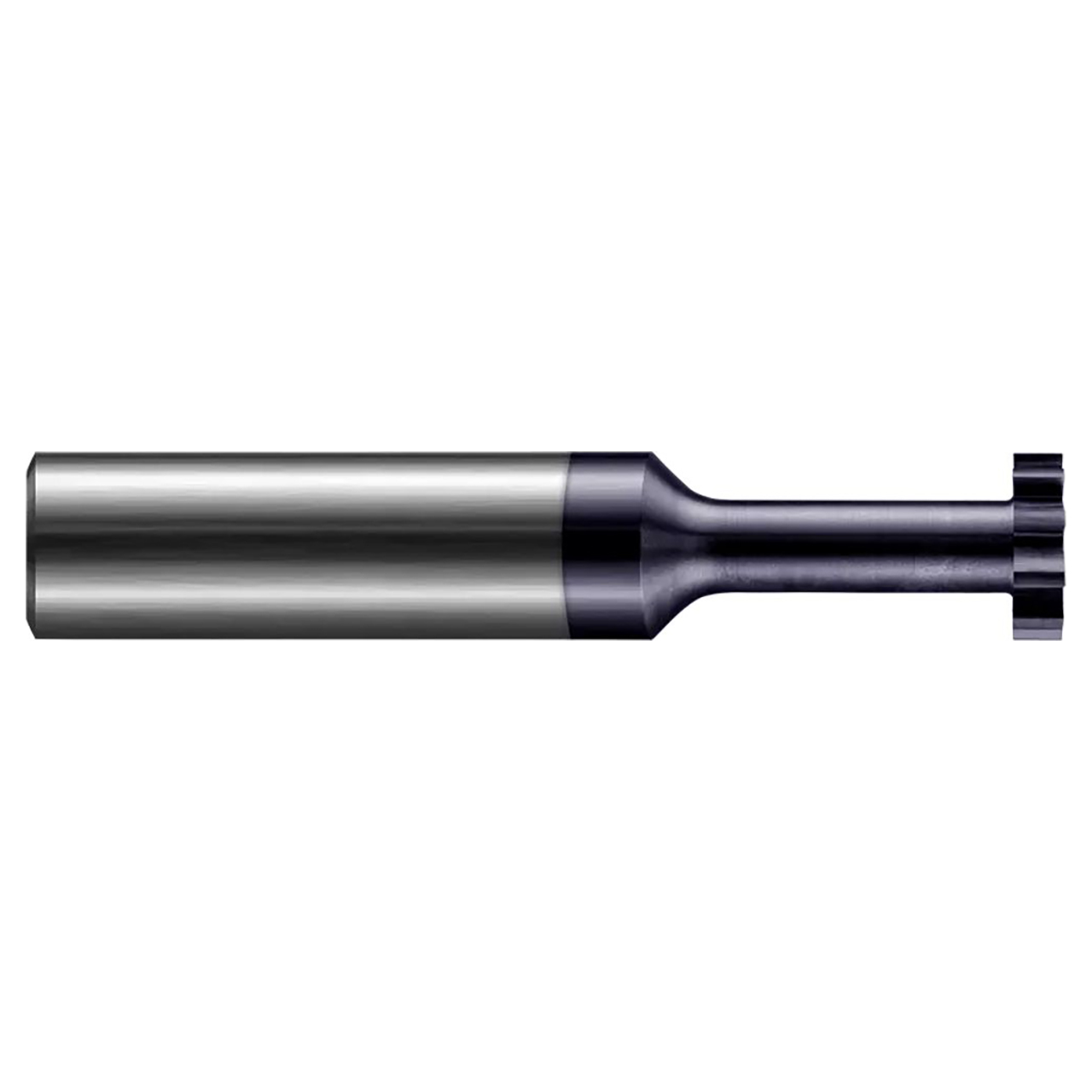

Harvey Tool 855665-C6 | 0.3125" (5/16) Diameter x 0.1560" (5/32) Width 0.3125" (5/16) Shank AlTiN Nano Coated Carbide Hardened Steels Keyseat Cutter

$105.30
Brand:
Harvey Tool
Cutter Diameter (Inch):
5/16"
Cutter Diameter (Decimal Inch):
0.3125"
Neck Diameter (Inch):
5/32"
Neck Diameter (Decimal Inch):
0.1560"
Number of Flutes:
8
Cutter Width (Inch):
5/32"
Cutter Width (Decimal Inch):
0.1560"
Neck Length (Inch):
15/32"
Neck Length (Decimal Inch):
0.4680"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Finish/Coating:
C6
interval quantity:
1
SKU:
25211582
UPC:
Weight:
0.10 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
  • Both sides of cutter are dished for clearance
  • CNC ground in the USA
  • Solid carbide

Product Specifications
Tool Number855665-C6
Cutter Diameter (Inch)0.3125" (5/16)
Neck Diameter (Inch)0.1560" (5/32)
Cutter Width (Inch)0.1560" (5/32)
Neck Length (Inch)0.4680" (15/32)
Overall Length (Inch)2.5000" (2-1/2)
Radial Depth of Cut (Inch)0.0630"
Flutes8
Reach Multiple1.5x
TypeI
Shank Diameter (Inch)0.3125" (5/16)
CoatingC6

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
