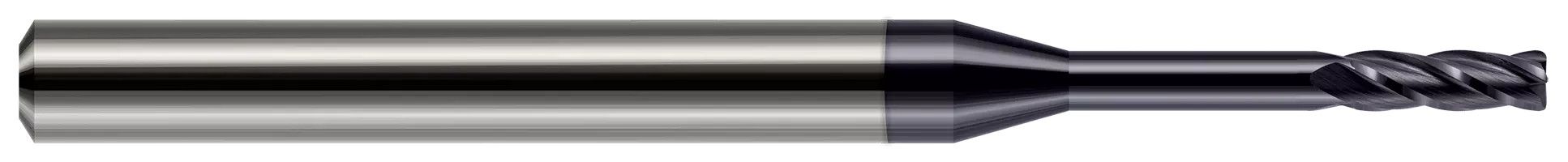

Harvey Tool 877716 | 0.2500" (1/4) Cutter DIA x 0.0100" Radius x 0.7500" (3/4) Length of Cut x 2.0000" (2) Reach Carbide Corner Radius End Mill, 4 Flutes. From the Harvey Tool Miniature End Mills - Corner Radius - Long Reach, Standard Flute product family.
Warning: This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm. For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
1/4"
Cutter Diameter (Decimal Inch):
0.2500"
Neck Diameter (Decimal Inch):
0.2460"
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Overall Reach (Inch):
2"
Overall Reach (Decimal Inch):
2.0000"
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Corner Radius (Decimal Inch):
0.0100"
Number of Flutes:
4
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
Uncoated
