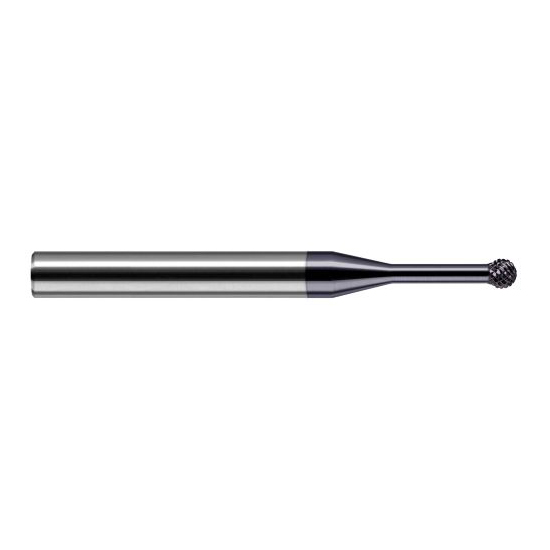

Harvey Tool 883231-C3 | 270 Degree Sperical Ball 1/32" Diameter x 1/8" Shank x 0.0260" LOC x 1-1/2" OAL FL AlTiN Coated Carbide Undercutting End Mill

About This Item

Product Specifications

Mill Diameter (Decimal Inch)	0.0310"
Mill Diameter (Inch)	1/32"
Neck Diameter (Decimal Inch)	0.0140"
Length Of Cut (Decimal Inch)	0.0260"
Neck Length (Decimal Inch)	0.1250"
Neck Length (Inch)	1/8"
Overall Reach (Decimal Inch)	0.1510"
Overall Length (Decimal Inch)	1.5000"
Overall Length (Inch)	1-1/2"
Radius (Decimal Inch)	0.0155"
Wrap Angle	270 Degree
Right Hand Teeth	12
Left Hand Teeth	10
Shank Diameter (Decimal Inch)	0.1250"
Shank Diameter (Inch)	1/8"
Coating	AlTiN
