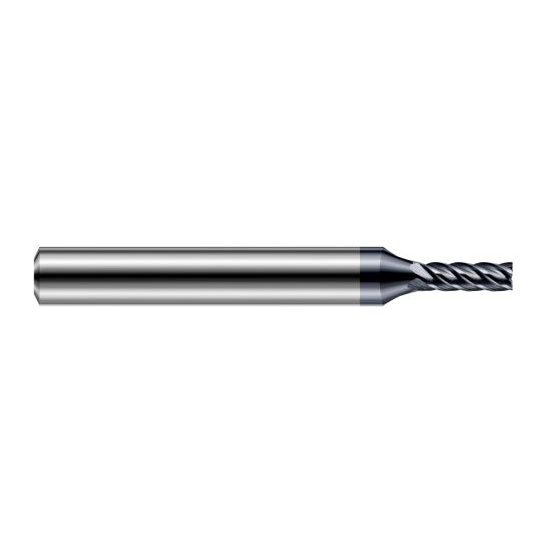

Product Specifications
| Cutter Diameter (Decimal Inch) | 0.1870" |
| Cutter Diameter (Inch) | 3/16" |
| Length Of Cut (Decimal Inch) | 1.0000" |
| Length Of Cut (Inch) | 1" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Number of Flutes | 5 |
| LOC Multiple | 5x |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (Inch) | 1/4" |
| Metric (Yes/No) | No |
| Finish/Coating | AlTiN Nano |
| Center Cutting (Yes/No) | Yes |
| Double or Single End | Single |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1870"
Number of Flutes:
5
Material:
Carbide
Finish/Coating:
AlTiN Nano
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Shank Type:
Straight
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Single or Double End:
Single
Application:
Hardened Steels
Center Cutting:
Yes
Ships:
From Partner Facility
