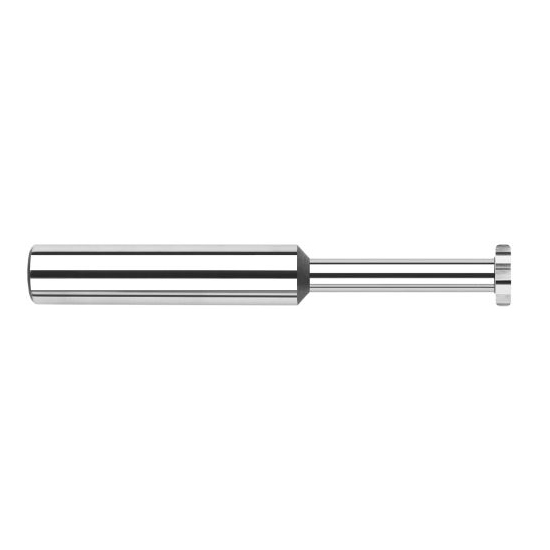

Harvey Tool 900095 | 1/4" Diameter x 1/8" Width x 1/4" Shank 0.0100" Corner Radus Uncoated Solid Carbide Straight Tooth Keyseat Cutter

$78.90
Ships:
From Partner Facility
Brand:
Harvey Tool
Milling Diameter (Inch):
1/4"
Milling Diameter (Decimal Inch):
0.2500"
Cutting Width (Inch):
1/8"
Cutting Width (Decimal Inch):
0.1250"
Corner Radius:
0.0100"
Neck Length (Inch):
3/4"
Neck Length (Decimal Inch):
0.7500"
Material:
Solid Carbide
Finish/Coating:
Uncoated
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Tooth Configuration:
Straight
Ships:
From Partner Facility
SKU:
25110863
UPC:
Weight:
0.06 LBS
Shipping:
Calculated at Checkout
Product Specifications
Mill Diameter (Decimal Inch) 0.2500"
Mill Diameter (Inch) 1/4"
Neck Diameter (Decimal Inch) 0.1250"
Neck Diameter (Inch) 1/8"
Cutter Width (Decimal Inch) 0.1250"
Cutter Width (Inch) 1/8"
Neck Length (Decimal Inch) 0.7500"
Neck Length (Inch) 3/4"
Overall Length (Decimal Inch) 2.5000"
Overall Length (Inch) 2-1/2"
Radial Depth Of Cut (Decimal Inch) 0.0530"
Corner Radius (Decimal Inch) 0.0100"
Number of Flutes 6
Reach Multiple (3x)
Type I
Shank Diameter (Decimal Inch) 0.2500"
Shank Diameter (Inch) 1/4"
Coating Uncoated
Top Corner Radius 0.01
