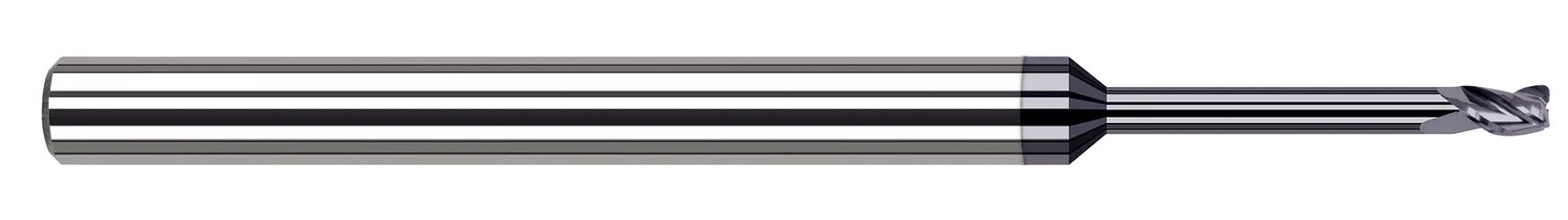

The variable helix design of the Variable Helix End Mills for High Temp Alloys - Corner Radius reduces chatter and harmonics.
- Variable helix design (approx. 34 Degree) reduces chatter and harmonics and increases material removal rates
- Latest generation AlTiN Nano coating offers superior hardness and heat resistance
- h6 shank tolerance for high precision tool holders
- Suitable for steels up to 45Rc
- Center cutting
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.1562" (5/32) |
| Neck Diameter (Inch) | 0.1520" |
| Length of Cut (Inch) | 0.2350" |
| Overall Reach (Inch) | 0.7500" (3/4) |
| Overall Length (Inch) | 3.0000" (3) |
| Number of Flutes | 4 |
| Corner Radius | 0.0300" |
| LOC Multiple | 1.5x |
| Reach Multiple | 5x |
| Shank Diameter (Inch) | 0.1875" (3/16) |
| Coating/Finish | C6 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Cutter Diameter (Inch):
5/32"
Cutter Diameter (Decimal Inch):
0.1562"
Neck Diameter (Decimal Inch):
0.1520"
Length of Cut (Decimal Inch):
0.2350"
Overall Reach (Inch):
3/4"
Overall Reach (Decimal Inch):
0.7500"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Corner Radius (Decimal Inch):
0.0300"
Number of Flutes:
4
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Finish/Coating:
C6
