Product Specifications
| Cutter Diameter (Inch) | 3/16" |
| Cutter Diameter (Decimal Inch) | 0.1875" |
| Neck Diameter (Decimal Inch) | 0.1830" |
| Length of Cut (Decimal Inch) | 0.2850" |
| Overall Reach (Inch) | 1" |
| Overall Reach (Decimal Inch) | 1.0000" |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Corner Radius (Decimal Inch) | 0.0050" |
| Number of Flutes | 4 |
| LOC Multiple | 1.5x |
| Reach Multiple | 5x |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Metric (Yes/No) | No |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Finish/Coating | AlTiN Nano |
| Double Ended (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

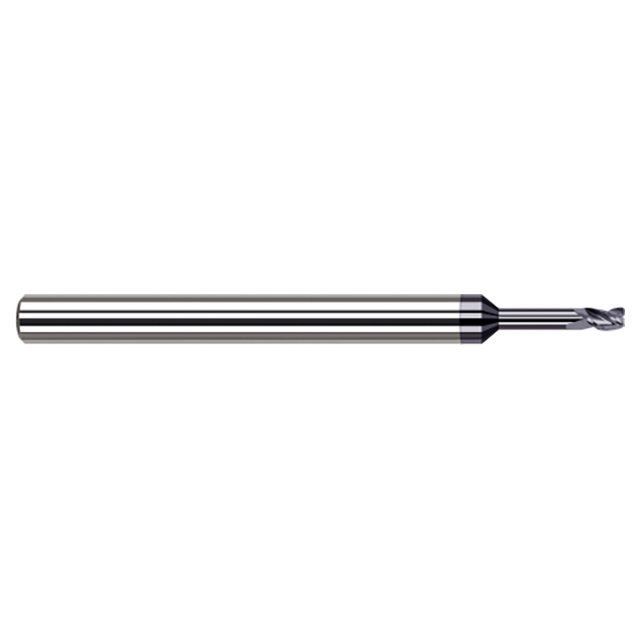

Brand:
Harvey Tool
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Corner Radius (Decimal Inch):
0.0050"
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
AlTiN Nano
Length of Cut (Decimal Inch):
0.2850"
Overall Reach (Inch):
1"
Overall Reach (Decimal Inch):
1.0000"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Single or Double End:
Single
Center Cutting:
No
Ships:
From Partner Facility
