Product Specifications
Manufacturer Part Number | 920505-C6 |
Cutter Diameter (Decimal Inch) | 0.118" |
Cutter Diameter (mm) | 3.00mm |
Length of Cut (Decimal Inch) | 0.177" |
Overall Length (Decimal Inch) | 2.500" |
Overall Length (Inch) | 2-1/2" |
Corner Radius (Decimal Inch) | 0.005" |
Number of Flute | 5 |
LOC Multiple | (1.5x) |
Shank Diameter (Decimal Inch) | 0.250" |
Shank Diameter (Inch) | 1/4" |
Metric | No |
Coating | C6 |

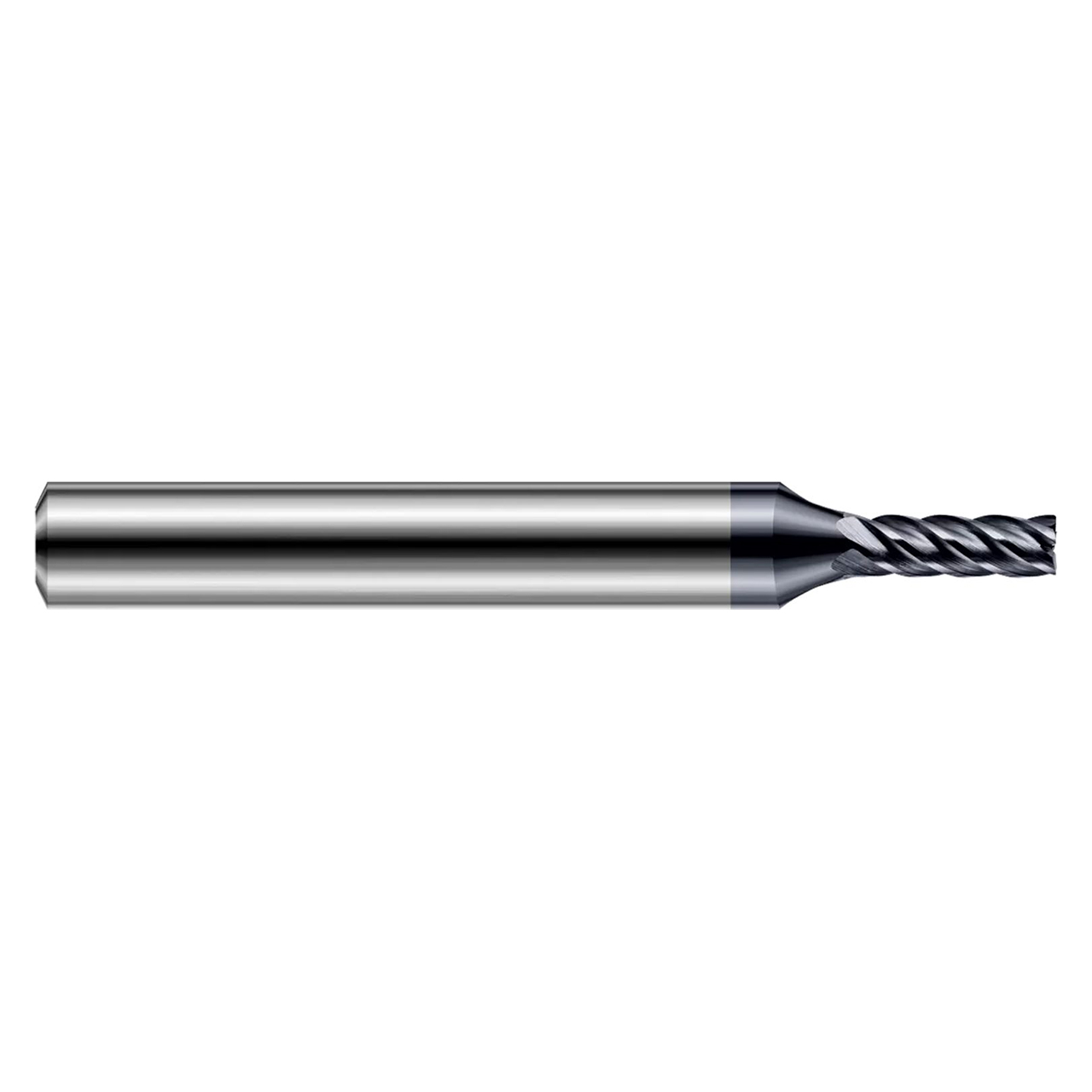

Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Harvey Tool
Mill Diameter (Inch):
1/8"
Mill Diameter (Decimal Inch):
0.1180"
Mill Diameter (mm):
3.00mm
Number of Flutes:
5
Corner Radius (Decimal Inch):
0.0050"
Corner Radius (mm):
0.13mm
Length of Cut (Inch):
11/64"
Length of Cut (Decimal Inch):
0.1770"
Length of Cut (mm):
4.50mm
Finish/Coating:
C6
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Interval quantity:
1
