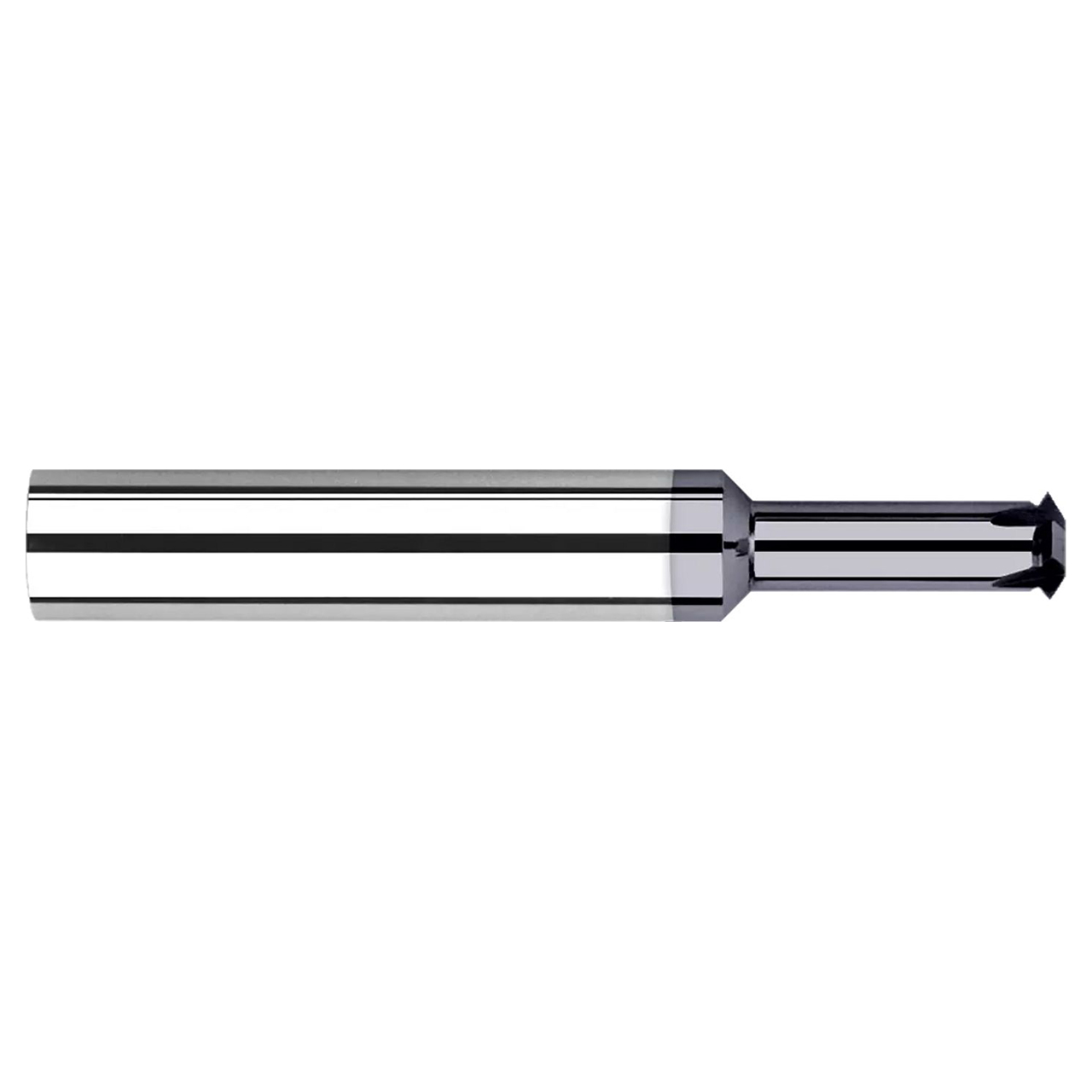

Harvey Tool Thread Milling Cutters - Single Form - UN Threads can mill multiple pitches, and cut internal and external
- Tip of included angle ground to a point
- Mills right hand and left hand threads
- CNC ground in the USA
- Solid carbide
Product Specifications
| Tool Number | 932955 |
| Cutter Diameter (Inch) | 0.2400" |
| Neck Diameter (Inch) | 0.1600" |
| Length of Cut (Inch) | 0.0460" |
| Overall Length (Inch) | 2.5000" (2-1/2) |
| Max Depth of Thread (Inch) | 0.3750" (3/8) |
| Angle per Side | 30 |
| Included Angle | 60 |
| Flutes | 4 |
| Size | 5/16 |
| Shank Diameter (Inch) | 0.2500" (1/4) |
| Coating | Uncoated |
