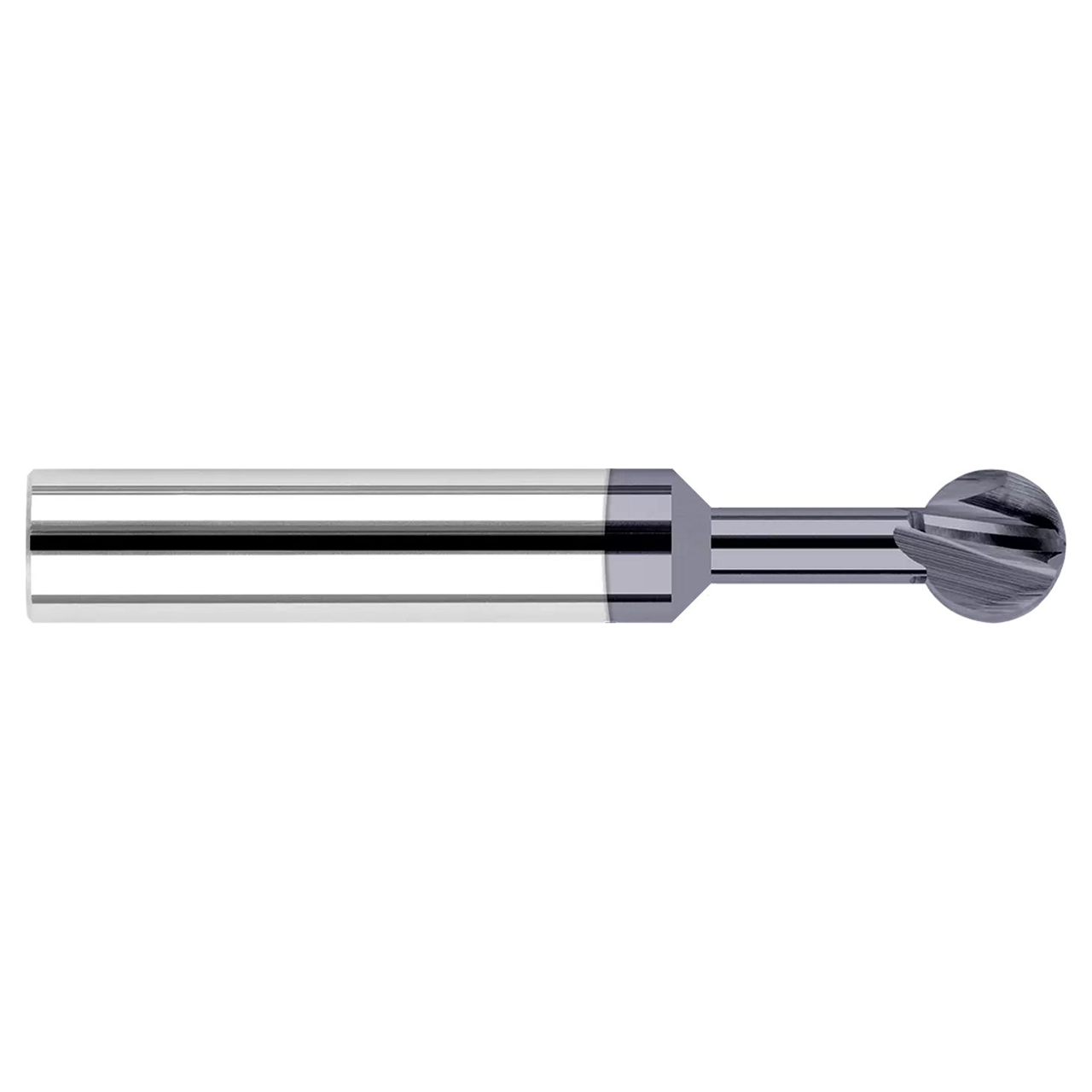

Harvey Tool 984040 | 0.6250" (5/8) Cutter Diameter x 0.5830" LOC x 1.5830" Reach 4 Flute Uncoated Undercutting End Mill

$309.90
Brand:
Harvey Tool
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6250"
Neck Diameter (Decimal Inch):
0.2920"
Radius (Inch):
5/16"
Radius (Decimal Inch):
0.3125"
Number of Flutes:
4
Length of Cut (Decimal Inch):
0.5830"
Neck Length (Inch):
1"
Neck Length (Decimal Inch):
1.0000"
Overall Reach (Decimal Inch):
1.5830"
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Finish/Coating:
Uncoated
SKU:
25256746
UPC:
Weight:
0.36 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Features
  • 300 Degree spherical ball
  • Designed for undercutting, deburring and multi-axis machining
  • Center cutting
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Manufacturer Part Number984040
Cutter Diameter (Inch)0.6250" (5/8)
Neck Diameter (Inch)0.2920"
Length of Cut (Inch)0.5830"
Overall Reach (Inch)1.5830"
Overall Length (Inch)3.5000" (3-1/2)
Neck Length (Inch)1.0000" (1)
Radius (Inch)0.3125" (5/16)
Shank Diameter (Inch)0.6250" (5/8)
Wrap Angle300 Degree
Number of Flutes4
CoatingUncoated
ProfileSpherical
