Product Specifications
| Cutter Diameter (Decimal Inch) | 0.1400" |
| Cutter Diameter (Inch) | 9/64" |
| Neck Diameter (Decimal Inch) | 0.1360" |
| Length Of Cut (Decimal Inch) | 0.2200" |
| Overall Reach (Decimal Inch) | 0.7500" |
| Overall Reach (Inch) | 3/4" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Number of Flutes | 4 |
| LOC Multiple | 1.5x |
| Reach Multiple | 5x |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Metric (Yes/No) | No |
| Finish/Coating | AlTiN Nano |
| Center Cutting (Yes/No) | No |
| Chip Breaker (Yes/No) | No |
| Double or Single End | Single |
| Weldon (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

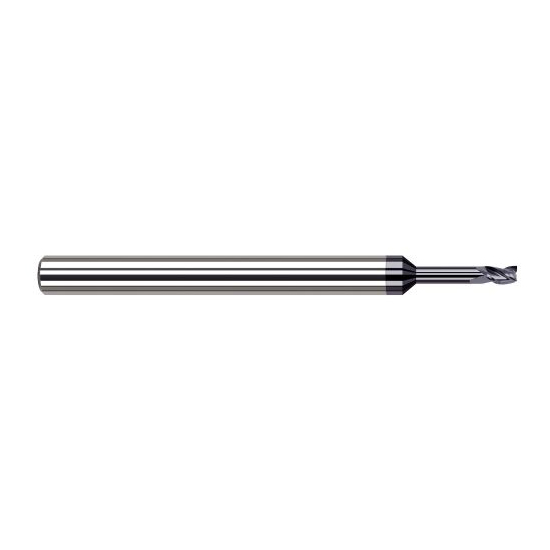

Brand:
Harvey Tool
Mill Diameter (Inch):
9/64"
Mill Diameter (Decimal Inch):
0.1400"
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
AlTiN Nano
Length of Cut (Decimal Inch):
0.2200"
Shank Type:
Reduced
Overall Reach (Inch):
3/4"
Overall Reach (Decimal Inch):
0.7500"
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Single or Double End:
Single
Application:
Exotic Alloys
Center Cutting:
No
Ships:
From Partner Facility
