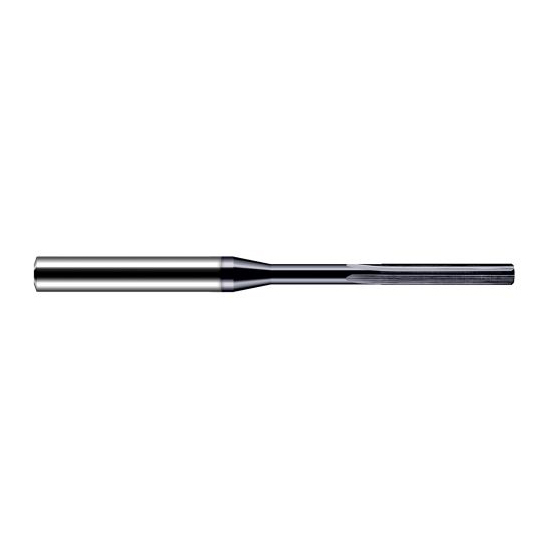

Harvey Tool RSB0380-C3 | 0.0380" 4FL Straight Flute Reduced Shank AlTiN Coating Solid Carbide Chucking Reamer

$50.90
Ships:
From Partner Facility
Brand:
Harvey Tool
Size (Decimal Inch):
0.0380"
Material:
Solid Carbide
Overall Reach (Inch):
1/2"
Overall Reach (Decimal Inch):
0.5000"
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Flute Style:
Straight
Number of Flutes:
4
Shank Type:
Reduced
Shank Diameter (Inch):
1/8"
Shank Diameter (Decimal Inch):
0.1250"
Ships:
From Partner Facility
interval quantity:
1
SKU:
10103689
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
Harvey Tool RSB0380-C3 | 0.0380" 4FL Straight Flute Reduced Shank AlTiN Coating Solid Carbide Chucking Reamer

Related Products

Features
  • Tolerance for Uncoated is +.0000"/-.0002". Tolerance for AlTiN coating is +.0002"/-.0000"
  • AlTiN coated for improved lubricity and heat resistance
  • Straight flutes for through and blind hole applications
  • Oversized, common shanks to maintain strength, stiffness, and accuracy
  • 45 Degree chamfer angle
  • h6 shank tolerance for high precision tool holders
  • Solid carbide
  • CNC ground in the USA
Product Specifications
Reamer Diameter (Decimal Inch) 0.0380"
Material Solid Carbide
Overall Reach (Inch) 1/2"
Overall Reach (Decimal Inch) 0.5000"
Overall Length (Inch) 2"
Overall Length (Decimal Inch) 2.0000"
Number of Flutes 4
Shank Diameter (Inch) 1/8"
Shank Diameter (Decimal Inch) 0.1250"
Chamfer Length (Decimal Inch) 0.0044"
LOC Multiple (7x)
Reach Multiple (13x)
Margin Length (Inch) 9/32"
Margin Length (Decimal Inch) 0.2810"
Finish/Coating AlTiN
Angle Per Side 45 Degrees
Included Angle 90 Degrees
Neck Diameter (Decimal Inch) 0.0370"
