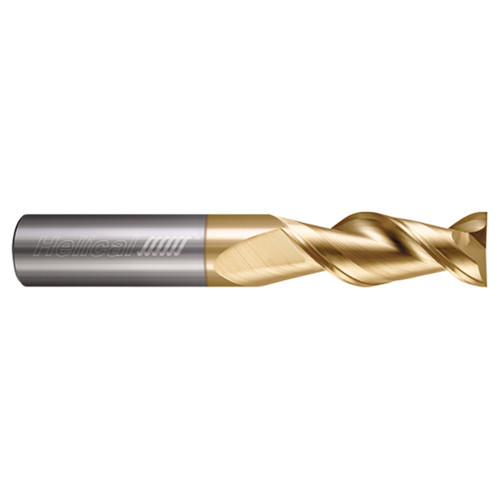

Helical Solutions 00572 | H45AL-R-20625 5/8" Diameter x 5/8" Shank x 1-5/8" LOC x 3-1/2" OAL 2 Flute Single End Zplus Coated Solid Carbide Square End Mill For Aluminum

About This Item

Product Specifications

Tool Description	H45AL-R-20625
Mill Diameter (Inch)	5/8"
Mill Diameter (Decimal Inch)	0.6250"
Number of Flutes	2
Length of Cut (Inch)	1-5/8"
Length of Cut (Decimal Inch)	1.6250"
Material	Solid Carbide
Overall Length (Inch)	3-1/2"
Overall Length (Decimal Inch)	3.5000"
Shank Diameter (Inch)	5/8"
Shank Diameter (Decimal Inch)	0.6250"
Finish/Coating	Zplus
Center Cutting (Yes/No)	Yes
Application	Aluminum
LOC Multiple	2.5x
Web Thickness (Decimal Inch)	0.0070"
Shank Length (Inch)	1-7/8"
Shank Length (Decimal Inch)	1.8750"
Chip Breaker (Yes/No)	No
Metric (Yes/No)	No
