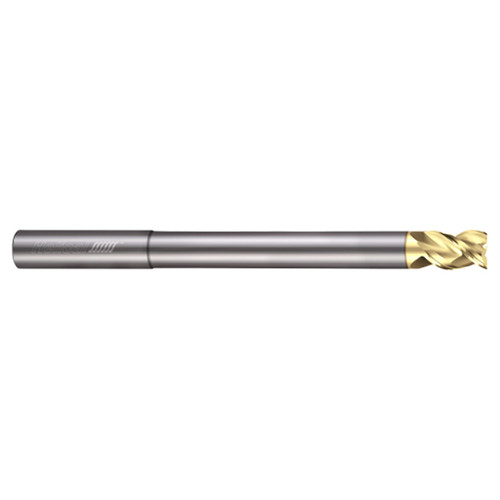

Helical Solutions 19032 | H45AL-RN-M-30125 1/8" Diameter x 1/8" Shank x 5/32" LOC x 3" OAL x 3/4" Reach x 45 Degree Helix Angle 3 Flute ZPLUS Coated Solid Carbide Reduced Neck Square End Mill

About This Item

Product Specifications

Tool Description	H45AL-RN-M-30125
Mill Diameter (Inch)	1/8"
Mill Diameter (Decimal Inch)	0.1250"
Number of Flutes	3
Length of Cut (Decimal Inch)	0.1563"
Material	Solid Carbide
Overall Length (Inch)	3"
Overall Length (Decimal Inch)	3.0000"
Shank Diameter (Inch)	1/8"
Shank Diameter (Decimal Inch)	0.1250"
Finish/Coating	Zplus
Overall Reach (Inch)	3/4"
Overall Reach (Decimal Inch)	0.7500"
Center Cutting (Yes/No)	Yes
Application	Aluminum
Neck Diameter (Decimal Inch)	0.1180"
LOC Multiple	1x
Reach Multiple	6x
Shank Length (Inch)	2-1/4"
Shank Length (Decimal Inch)	2.2500"
Chip Breaker (Yes/No)	No
Metric (Yes/No)	No
