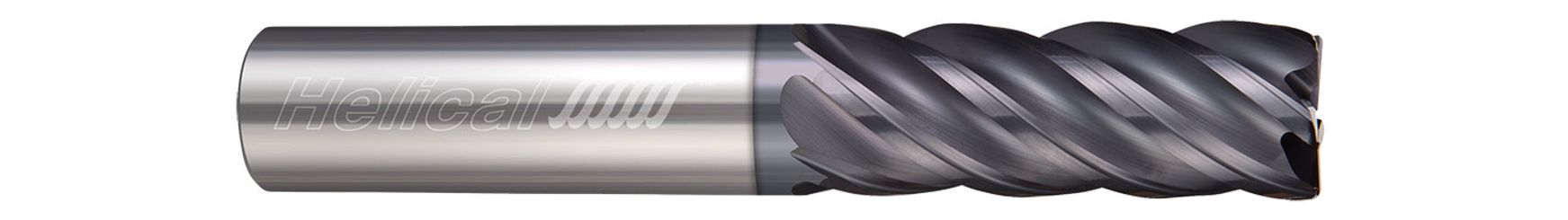

Helical Solutions 34447W | HEV-X-51000-R.030 1" Diameter x 1" Shank x 4-1/4" LOC x 7" OAL x 0.0300" Radius 5 Flute Aplus Coated Solid Carbide Corner Radius End Mill

$540.90
Brand:
Helical Solutions
Mill Diameter (Inch):
1"
Mill Diameter (Decimal Inch):
1.0000"
Mill Diameter (mm):
25.4mm
Number of Flutes:
5
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
4-1/4"
Length of Cut (Decimal Inch):
4.2500"
Length of Cut (mm):
107.95mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.4mm
Overall Length (Inch):
7"
Overall Length (Decimal Inch):
7.0000"
Overall Length (mm):
177.8mm
SKU:
25188149
Weight:
1.23 LBS
Shipping:
Free Shipping
34447W

The 5 flute design of the HEV-5 provides a significant lift in tool life and productivity, while increasing feed rates over 4-fluted tools. Its variable pitch geometry, high flute count, and Aplus coating make it excel in tough materials like steels, tool steels, cast iron, titanium, and titanium alloys.

  • Offers outstanding performance and high temperature resistance in a wide range of ferrous materials, including low and medium alloy steels, tool steels, cast iron, titanium, and titanium alloys
  • Engineered for excellent performance in light profiling, High Efficiency Milling (HEM), and finishing applications
  • 5 flute variable pitch design for reduced harmonics and increased feed rates
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Aplus coating offers added lubricity and high temperature resistance for faster speeds and feeds and improved tool life
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch) 1"
Length of Cut (Inch) 4.2500" (4-1/4)
Overall Length (Inch) 7"
Corner Radius (Inch) 0.0300"
No of Flutes 5
Shank Diameter (Inch) 1"
Finish/Coating APLUS
Center Cutting (Yes/No) Yes

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov

Brand:
Helical Solutions
Mill Diameter (Inch):
1"
Mill Diameter (Decimal Inch):
1.0000"
Mill Diameter (mm):
25.4mm
Number of Flutes:
5
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
4-1/4"
Length of Cut (Decimal Inch):
4.2500"
Length of Cut (mm):
107.95mm
Finish/Coating:
APLUS
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.4mm
Overall Length (Inch):
7"
Overall Length (Decimal Inch):
7.0000"
Overall Length (mm):
177.8mm
