Description

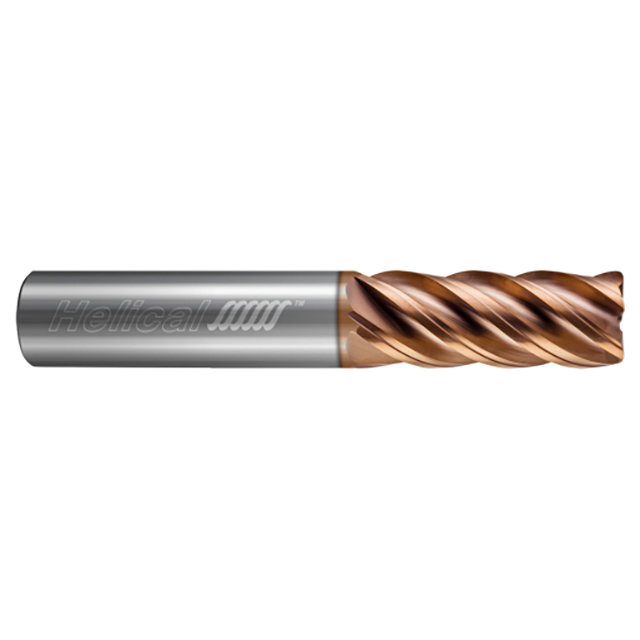

The Helical Solutions 59872 3/8" T+Plus end mill is a premium 5-flute carbide end mill made for demanding machining operations on steels, high-temperature alloys, and titanium materials. This HEV-S-50375-R.060 5-flute corner radius cutter features a 0.0600" corner radius that balances edge strength with surface finish capability, making it ideal for profiling, slotting, and contouring applications. The solid carbide corner radius mill for high-temperature alloy construction delivers exceptional rigidity and wear resistance, outperforming high-speed steel tools in hardness retention and cutting speed capability. Advanced T+Plus coating technology on this 3/8" T+Plus coated carbide end mill for steels reduces friction and heat buildup, extending tool life significantly beyond uncoated carbide cutters. With a 3/8" diameter and matching 3/8" shank, the Helical Solutions T+Plus coated end mill provides universal compatibility with standard collet and toolholder systems. The 1/2-inch length of cut specification offers sufficient flute depth for most milling operations while maintaining tool rigidity for vibration-free cutting. This 2.000" overall length, 3/8" solid end mill features a center-cutting design that enables plunge milling and ramping operations without pre-drilling pilot holes. The five-flute geometry increases material removal rates compared to three- or four-flute designs, making this 5-flute carbide end mill highly productive in high-volume manufacturing. Professional machinists choose this corner radius solid carbide cutter for difficult materials when machining aerospace components, medical implants, and industrial tooling from exotic alloys. The 0.0600" corner radius reduces stress concentrations while providing stronger cutting edges than sharp-cornered end mills, minimizing chipping on interrupted cuts. The HEV-S-50375-R.060 designation ensures accurate reordering of this precision-ground Helical Solutions 59872 tool. The 1.5" shank length provides adequate tool extension for deep-cavity machining while maintaining the stiffness needed for precision work. Invest in this Helical Solutions 59872 3/8" T+Plus end mill to achieve superior surface finishes and extended tool life when machining challenging materials.
Product Features and Benefits
T+Plus Advanced Coating
Reduces heat and friction on this 3/8" T+Plus coated carbide end mill for steels, extending tool life beyond uncoated solid carbide corner radius mills for high-temp alloys.
5-Flute High-Productivity Design
Increased material removal rates in this 5-flute carbide end mill compared to 3- or 4-flute designs, making the HEV-S-50375-R.060 5-flute corner radius cutter highly efficient.
0.0600" Corner Radius Geometry
Balances edge strength and finish quality in this Helical Solutions 59872, providing superior chip evacuation as a corner-radius solid-carbide cutter for difficult materials.
Solid Carbide Construction
Exceptional rigidity and hardness retention in this 2.000" overall length, 3/8" solid end mill ensure precision cutting on titanium and high-temperature alloys.
Center-Cutting Capability
Enables plunge milling without pilot holes in this Helical Solutions T+Plus coated end mill, adding versatility to the 3/8" T+Plus coated carbide end mill for steel applications.
Product Specifications
| Tool Description | HEV-S-50375-R.060 |
| Mill Diameter (Inch) | 3/8" |
| Mill Diameter (Decimal Inch) | 0.3750" |
| Number of Flutes | 5 |
| Length of Cut (Inch) | 1/2" |
| Length of Cut (Decimal Inch) | 0.5000" |
| Material | Solid Carbide |
| Overall Length (Inch) | 2" |
| Overall Length (Decimal Inch) | 2.0000" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Finish/Coating | Tplus |
| Center Cutting (Yes/No) | Yes |
| Application | Steels |
| Corner Radius (Decimal Inch) | 0.0600" |
| LOC Multiple | 1x |
| Shank Length (Inch) | 1-1/2" |
| Shank Length (Decimal Inch) | 1.5000" |
| Chip Breaker (Yes/No) | No |
| Metric (Yes/No) | No |
Frequently Asked Questions
What materials can the Helical Solutions 59872 machine process effectively?
This 3/8" T+Plus end mill excels on steels, high-temperature alloys, and titanium as a specialized solid-carbide corner radius mill.
What is the corner radius on this 5-flute carbide end mill?
The 0.0600" corner radius on this HEV-S-50375-R.060 5-flute corner radius cutter provides edge strength while maintaining finish quality.
How many flutes does the Helical Solutions 59872 have?
This corner radius solid carbide cutter for difficult materials features 5 flutes for increased productivity as a high-performance 5-flute carbide end mill.
What coating protects the 3/8" T+Plus coated carbide end mill for steels?
The T+Plus coating on this Helical Solutions T+Plus coated end mill reduces friction and heat, extending life on difficult materials.
What is the overall length of this 2.000" overall length, 3/8" solid end mill?
The Helical Solutions 59872 3/8" T+Plus end mill measures 2.0000" overall length with a 0.5000" length of cut for versatile machining applications.
