Product Specifications

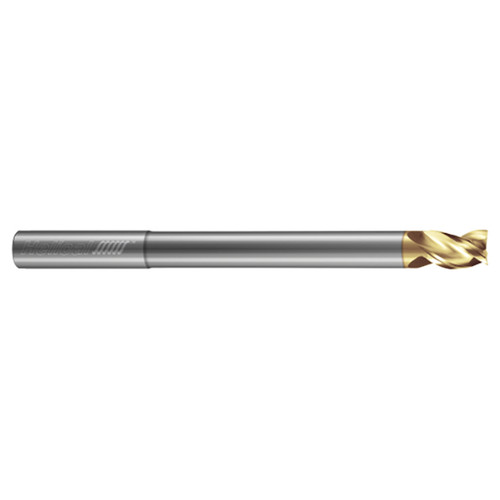

| Tool Description | H40ALV-RN-ML-30375 |
| Mill Diameter (Inch) | 3/8" |
| Mill Diameter (Decimal Inch) | 0.3750" |
| Number of Flutes | 3 |
| Length of Cut (Inch) | 1/2" |
| Length of Cut (Decimal Inch) | 0.5000" |
| Material | Solid Carbide |
| Overall Length (Inch) | 5" |
| Overall Length (Decimal Inch) | 5.0000" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Finish/Coating | Zplus |
| Overall Reach (Inch) | 2-1/2" |
| Overall Reach (Decimal Inch) | 2.5000" |
| Center Cutting (Yes/No) | Yes |
| Application | Aluminum |
| Neck Diameter (Decimal Inch) | 0.3560" |
| LOC Multiple | 1x |
| Reach Multiple | 6x |
| Web Thickness (Decimal Inch) | 0.0080" |
| Shank Length (Inch) | 2-1/2" |
| Shank Length (Decimal Inch) | 2.5000" |
| Chip Breaker (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Metric (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Number of Flutes:
3
Length of Cut (Inch):
1/2"
Length of Cut (Decimal Inch):
0.5000"
Overall Reach (Inch):
2-1/2"
Overall Reach (Decimal Inch):
2.5000"
Material:
Solid Carbide
Finish/Coating:
Zplus
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Application:
Aluminum
Single or Double End:
Single
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Ships:
From Partner Facility
