Product Specifications

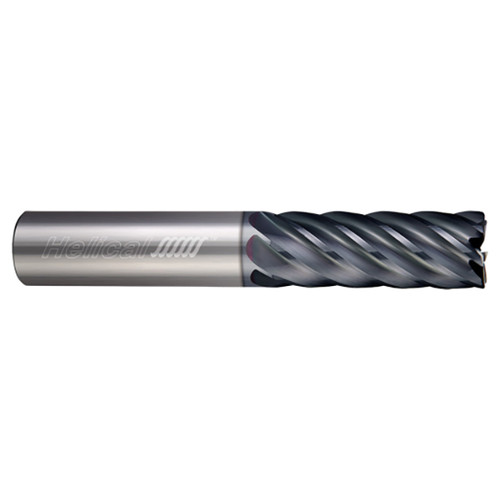

| Tool Description | HEV-R-70500-R.060 |
| Mill Diameter (Inch) | 1/2" |
| Mill Diameter (Decimal Inch) | 0.5000" |
| Number of Flutes | 7 |
| Length of Cut (Inch) | 1-1/4" |
| Length of Cut (Decimal Inch) | 1.2500" |
| Material | Solid Carbide |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Finish/Coating | Aplus |
| Center Cutting (Yes/No) | No |
| Application | Steels |
| Corner Radius (Decimal Inch) | 0.0600" |
| LOC Multiple | 2.5x |
| Shank Length (Inch) | 1-3/4" |
| Shank Length (Decimal Inch) | 1.7500" |
| Chip Breaker (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Metric (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Number of Flutes:
7
Corner Radius (Decimal Inch):
0.0600"
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Material:
Solid Carbide
Finish/Coating:
APLUS
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Application:
Steels, High-Temp Alloys & Titanium
Single or Double End:
Single
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Ships:
From Partner Facility
