Product Specifications

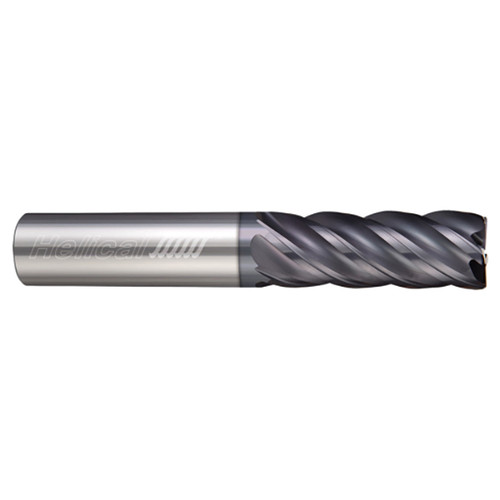

| Tool Description | HEV-LX-50625-R.120 |
| Mill Diameter (Inch) | 5/8" |
| Mill Diameter (Decimal Inch) | 0.6250" |
| Number of Flutes | 5 |
| Length of Cut (Inch) | 3-1/4" |
| Length of Cut (Decimal Inch) | 3.2500" |
| Material | Solid Carbide |
| Overall Length (Inch) | 6" |
| Overall Length (Decimal Inch) | 6.0000" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Finish/Coating | Aplus |
| Center Cutting (Yes/No) | Yes |
| Application | Steels |
| Corner Radius (Decimal Inch) | 0.1200" |
| LOC Multiple | 5.2x |
| Shank Length (Inch) | 2-3/4" |
| Shank Length (Decimal Inch) | 2.7500" |
| Chip Breaker (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Metric (Yes/No) | No |
| Coolant Through (Yes/No) | No |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6250"
Number of Flutes:
5
Corner Radius (Decimal Inch):
0.1200"
Length of Cut (Inch):
3-1/4"
Length of Cut (Decimal Inch):
3.2500"
Material:
Solid Carbide
Finish/Coating:
APLUS
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Application:
Steels, High-Temp Alloys & Titanium
Single or Double End:
Single
Overall Length (Inch):
6"
Overall Length (Decimal Inch):
6.0000"
Ships:
From Partner Facility
