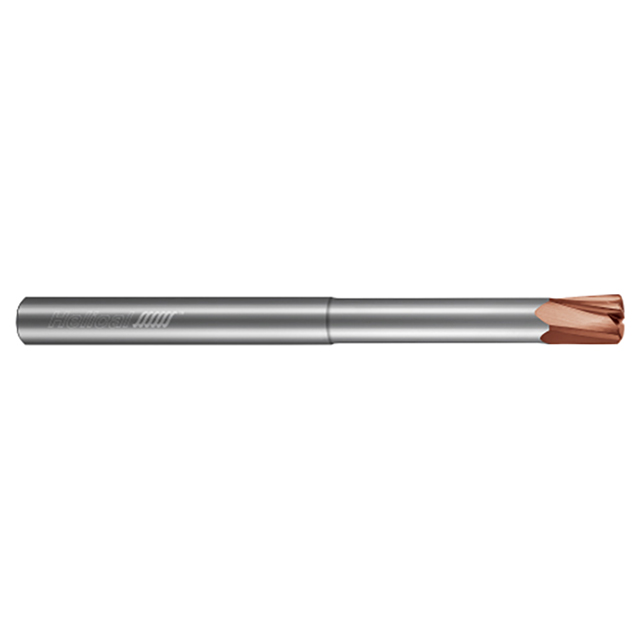

Helical Solutions 82671 | HFV-RN-060-50250 1/4" Diameter x 1/4" Shank x 1/4" LOC x 1-1/2" Reach x 3" OAL 5 Flute Tplus Coated Solid Carbide Reduced Neck High-Feed End Mill

$84.20
Ships:
From Partner Facility
Brand:
Helical Solutions
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Number of Flutes:
5
Length of Cut (Inch):
1/4"
Length of Cut (Decimal Inch):
0.2500"
Overall Reach (Inch):
1-1/2"
Overall Reach (Decimal Inch):
1.5000"
Material:
Solid Carbide
Finish/Coating:
Tplus
Theoretical Radius (Decimal Inch):
0.0314"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Application:
Steels up to 45 Rc
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Ships:
From Partner Facility
SKU:
25166382
UPC:
Weight:
0.05 LBS
Shipping:
Free Shipping
Product Specifications
Tool Description HFV-RN-060-50250
Mill Diameter (Inch) 1/4"
Mill Diameter (Decimal Inch) 0.2500"
Number of Flutes 5
Length of Cut (Inch) 1/4"
Length of Cut (Decimal Inch) 0.2500"
Material Solid Carbide
Overall Length (Inch) 3"
Overall Length (Decimal Inch) 3.0000"
Shank Diameter (Inch) 1/4"
Shank Diameter (Decimal Inch) 0.2500"
Finish/Coating Tplus
Overall Reach (Inch) 1-1/2"
Overall Reach (Decimal Inch) 1.5000"
Center Cutting (Yes/No) No
Application Steels up to 45 Rc
Neck Diameter (Decimal Inch) 0.2200"
Corner Radius (Decimal Inch) 0.0200"
Theoretical Radius (Decimal Inch) 0.0314"
LOC Multiple 1x
Reach Multiple 6x
Shank Length (Inch) 1-1/2"
Shank Length (Decimal Inch) 1.5000"
Chip Breaker (Yes/No) No
Weldon Flat (Yes/No) No
Metric (Yes/No) No
Coolant Through (Yes/No) No
