Product Specifications

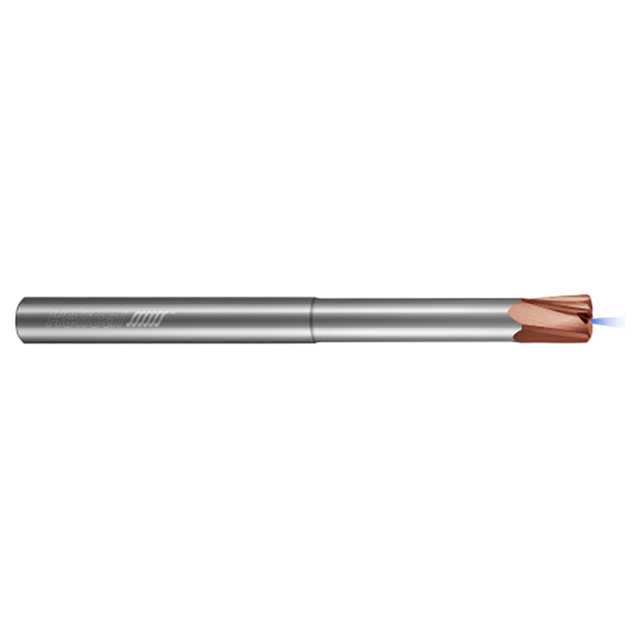

| Tool Description | HFVC-RN-040-50250 |
| Mill Diameter (Inch) | 1/4" |
| Mill Diameter (Decimal Inch) | 0.2500" |
| Number of Flutes | 5 |
| Length of Cut (Inch) | 1/4" |
| Length of Cut (Decimal Inch) | 0.2500" |
| Material | Solid Carbide |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Finish/Coating | Tplus |
| Overall Reach (Inch) | 1" |
| Overall Reach (Decimal Inch) | 1.0000" |
| Center Cutting (Yes/No) | No |
| Application | Steels up to 45 Rc |
| Neck Diameter (Decimal Inch) | 0.2200" |
| Corner Radius (Decimal Inch) | 0.0200" |
| Theoretical Radius (Decimal Inch) | 0.0314" |
| LOC Multiple | 1x |
| Reach Multiple | 4x |
| Shank Length (Inch) | 2" |
| Shank Length (Decimal Inch) | 2.0000" |
| Chip Breaker (Yes/No) | No |
| Weldon Flat (Yes/No) | No |
| Metric (Yes/No) | No |
| Coolant Through (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Number of Flutes:
5
Length of Cut (Inch):
1/4"
Length of Cut (Decimal Inch):
0.2500"
Overall Reach (Inch):
1"
Overall Reach (Decimal Inch):
1.0000"
Material:
Solid Carbide
Finish/Coating:
Tplus
Theoretical Radius (Decimal Inch):
0.0314"
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Application:
Steels up to 45 Rc
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Ships:
From Partner Facility
