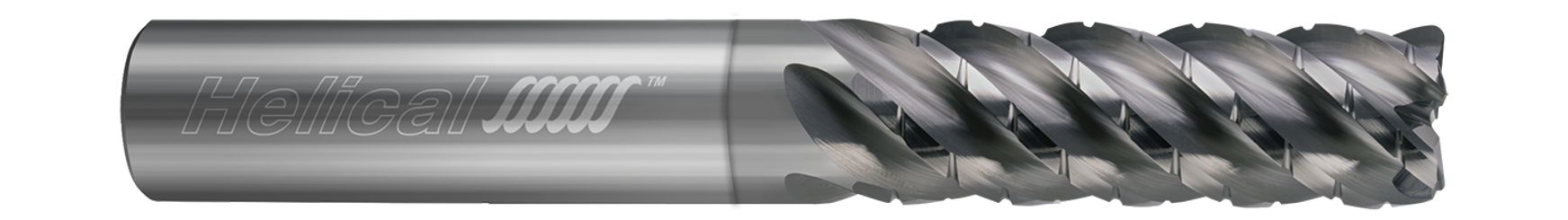

This Helical Solutions offering of Chipbreaker Rougher End Mills is engineered for High Efficiency Milling (HEM) in aerospace aluminum alloys, and features CNC tooling with variable pitch and chipbreaker geometry.
- Specially engineered for optimal performance in High Efficiency Milling (HEM) of aerospace aluminum alloys with excellent performance in other non-ferrous alloys
- Excellent tool life and maximum material removal rates proven through extensive testing
- Engineered with variable pitch and offset chipbreaker geometry for optimal chip evacuation, minimized harmonics, and reduced tool pressure
- Center cutting
- h6 shank tolerance for high precision tool holders
- Nplus coating for maximum performance in abrasive aluminums and extended tool life in a wide variety of non-ferrous alloys
- Solid carbide
Product Specifications
| Cutter Diameter (Inch) | 0.7500" (3/4) |
| Length of Cut (Inch) | 2.2500" (2-1/4) |
| Overall Length (Inch) | 5" |
| Corner Radius (Inch) | 0.1250" (1/8) |
| No of Flutes | 5 |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Finish/Coating | NPLUS |
| Center Cutting (Yes/No) | Yes |
| Chip Breaker (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
3/4"
Mill Diameter (Decimal Inch):
0.7500"
Mill Diameter (mm):
19.05mm
Number of Flutes:
5
Corner Radius (Inch):
1/8"
Corner Radius (Decimal Inch):
0.1250"
Corner Radius (mm):
3.18mm
Length of Cut (Inch):
2-1/4"
Length of Cut (Decimal Inch):
2.2500"
Length of Cut (mm):
57.15mm
Finish/Coating:
NPLUS
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Overall Length (Inch):
5"
Overall Length (Decimal Inch):
5.0000"
Overall Length (mm):
127mm
