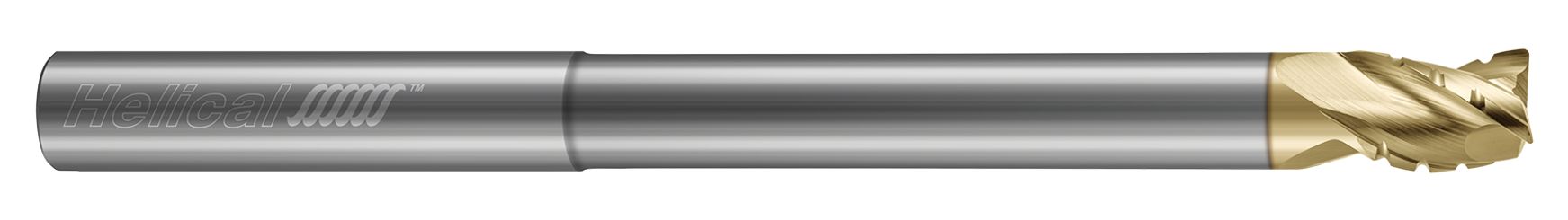

Helical Solutions 84867 | H35ALV-C-RN-056-30312-R.030 5/16" Diameter x 5/16" Shank x 7/16" LOC x 4" OAL x 0.0300" Radius 3 Flute Zplus Coated Solid Carbide Corner Radius End Mill

$68.20
Brand:
Helical Solutions
Mill Diameter (Inch):
3/16"
Mill Diameter (Decimal Inch):
0.1875"
Mill Diameter (mm):
4.76mm
Number of Flutes:
4
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Finish/Coating:
APLUS
Center Cutting:
Yes
interval quantity:
1
SKU:
25188299
UPC:
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
84867

Related Products

Helical's H35ALV-C-RN-3 product offering, a 3 flute, corner radius end mill, is engineered with optimized variable pitch and chipbreaker geometries for reduced harmonics and elevated material removal rates (MRR).

  • Engineered with optimized variable pitch and chipbreaker geometry for reduced harmonics and elevated material removal rates
  • Unique tool design requires less torque and horsepower
  • Excellent performance in High Efficiency Milling (HEM)
  • Reduced neck provides maximum strength in long reach and deep pocketing applications
  • Unique "3 teeth-to-center" end geometry for ramping applications
  • h6 shank tolerance for high precision tool holders
  • Zplus coating for maximum performance in aluminum and non-ferrous alloys
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.3125" (5/16)
Neck Diameter (Inch)0.2960"
Length of Cut (Inch)0.4375" (7/16)
Overall Reach (Inch)1.7500" (1-3/4)
Overall Length (Inch)4"
Corner Radius (Inch)0.0300"
No of Flutes3
Shank Diameter (Inch)0.3125" (5/16)
Finish/CoatingZPLUS
Center Cutting (Yes/No)Yes
Chip Breaker (Yes/No)Yes
