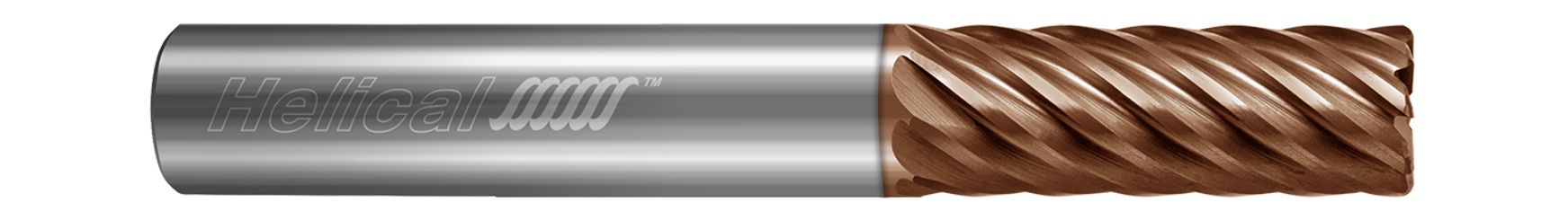

Helical Solutions 86248 | HVNI-020-80500-R.060 1/2" Diameter x 1/2" Shank x 1" LOC x 3" OAL x 0.0600" Radius 8 Flute Tplus Coated Solid Carbide Corner Radius End Mill

$82.60
Brand:
Helical Solutions
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.7mm
Number of Flutes:
8
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.4mm
Finish/Coating:
Tplus
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.7mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
SKU:
25188705
Weight:
1.23 LBS
Shipping:
Free Shipping

This 8 flute, Corner Radius End Mill is specially enginered for optimal performace in High Efficiency Milling (HEM) of Inconel 718 and other nickel-based superalloys, and features a variable pitch design for improved part finish.

  • Specially engineered for optimal performance in High Efficiency Milling (HEM) of Inconel 718 and other nickel-based superalloys
  • 8 flute variable pitch geometry results in higher quality parts by decreasing chatter and harmonics
  • Not for use in traditional slotting and roughing toolpaths
  • End cutting geometry (non-center cutting)
  • h6 shank tolerance for high precision tool holders
  • Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.5000" (1/2)
Length of Cut (Inch)1"
Overall Length (Inch)3"
Corner Radius (Inch)0.0600"
No of Flutes8
Shank Diameter (Inch)0.5000" (1/2)
Finish/CoatingTPLUS
