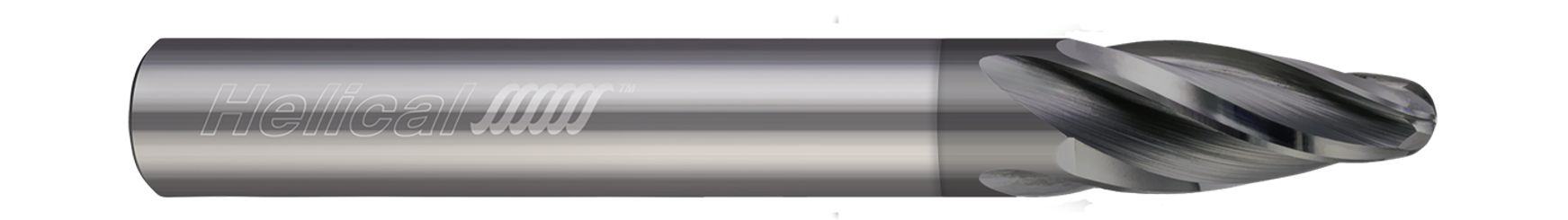

With a specially defined profile for minimized cycle times and vastly improved surface finish, the oval form of this Multi-Axis Finisher for Aluminum features two tangential radii for approach angle versatility and clearance in tight spaces.
- Specially defined profile for massive reductions in cycle time and vastly improved surface finish
- Oval form with two tangential radii for versatility in angle of approach and clearance in tight spaces
- 4 flute geometry specifically designed for finishing in aluminum and non-ferrous alloys
- Center cutting
- Nplus coating for maximum performance in abrasive aluminums and extended tool life in a wide variety of non-ferrous alloys
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.6250" (5/8) |
| Length of Cut (Inch) | 1.3766" |
| Overall Length (Inch) | 3.5000" (3-1/2) |
| No of Flutes | 4 |
| Shank Diameter (Inch) | 0.6250" (5/8) |
| Finish/Coating | NPLUS |
| Center Cutting (Yes/No) | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Length of Cut (Inch):
1-3/8"
Length of Cut (Decimal Inch):
1.3766"
Length of Cut (mm):
34.97mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Number of Flutes:
4
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.9mm
Finish/Coating:
NPLUS
