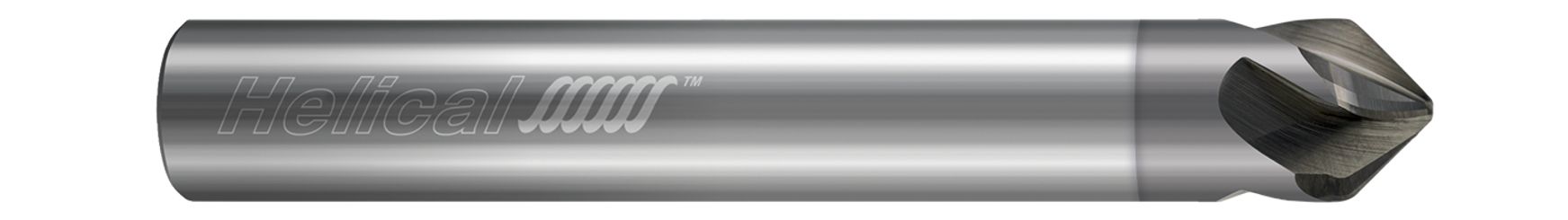

Helical Solutions 86294 | HMAF-AL-40500-12-T45 1/2" Diameter x 1/2" Shank x 3" OAL x 90 Degree Included Angle 4 Flute Nplus Coated Solid Carbide Chamfer Mill

$214.30
Brand:
Helical Solutions
Cutter Head Diameter (Inch):
1/2"
Cutter Head Diameter (Decimal Inch):
0.5000"
Cutter Head Diameter (mm):
12.7mm
Included Angle A:
90
Finish/Coating:
NPLUS
Overall Length (Inch):
3.0000"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.7mm
Number of Flutes:
4"
SKU:
25188413
Weight:
1.23 LBS
Shipping:
Free Shipping

CNC ground in the USA, this solid carbide, 4 Flute Taper Form Multi-Axis Finisher features three targential radii offered in a variety of angles to provide maximum performance and optimal clearance for any aluminum workpiece.

  • Specially defined profile for massive reductions in cycle time and vastly improved surface finish
  • Taper form with three tangential radii offered in a variety of angles for maximum performance and optimal clearance angle for any workpiece
  • 4 flute geometry specifically designed for finishing in aluminum and non-ferrous alloys
  • Center cutting
  • Nplus coating for maximum performance in abrasive aluminums and extended tool life in a wide variety of non-ferrous alloys
  • Solid carbide
  • CNC ground in the USA

Product Specifications
Cutter Diameter (Inch)0.5000" (1/2)
Length of Cut (Inch)0.2500" (1/4)
Overall Length (Inch)3"
Corner Radius (Inch)0.0625" (1/16)
Included Angle90
No of Flutes4
Shank Diameter (Inch)0.5000" (1/2)
Finish/CoatingNPLUS
Center Cutting (Yes/No)Yes
