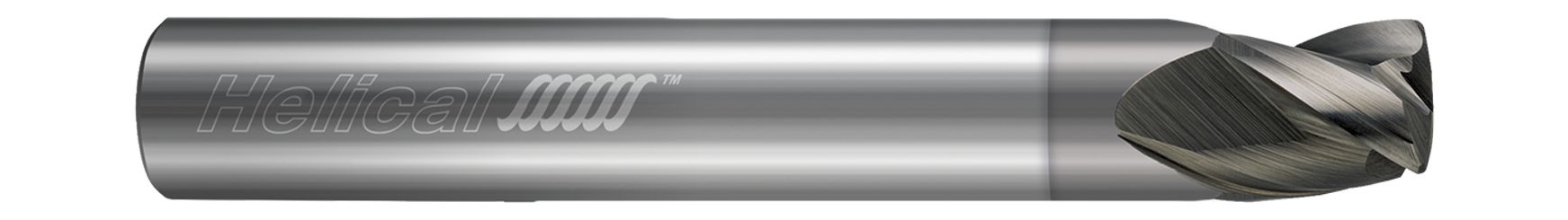

This Helical Solutions offering of Multi-Axis Finisher End Mills features tooling with a specially defined profile for massive reductions in cycle time and vastly improved surface finish when machining in aluminum and non-ferrous alloys.
- Specially defined profile for massive reductions in cycle time and vastly improved surface finish
- Lens form with two tangential radii for finishing floors
- 3 flute geometry specifically designed for finishing in aluminum and non-ferrous alloys
- Center cutting
- Nplus coating for maximum performance in abrasive aluminums and extended tool life in a wide variety of non-ferrous alloys
- Solid carbide
- CNC ground in the USA
Product Specifications
| Cutter Diameter (Inch) | 0.6250" (5/8) |
| Length of Cut (Inch) | 0.6250" (5/8) |
| Overall Length (Inch) | 3.5000" (3-1/2) |
| Corner Radius (Inch) | 0.0350" |
| No of Flutes | 3 |
| Shank Diameter (Inch) | 0.6250" (5/8) |
| Finish/Coating | NPLUS |
| Center Cutting | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6250"
Mill Diameter (mm):
15.88mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0350"
Corner Radius (mm):
0.89mm
Number of Flutes:
3
Finish/Coating:
NPLUS
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Overall Length (mm):
88.9mm
Center Cutting:
Yes
