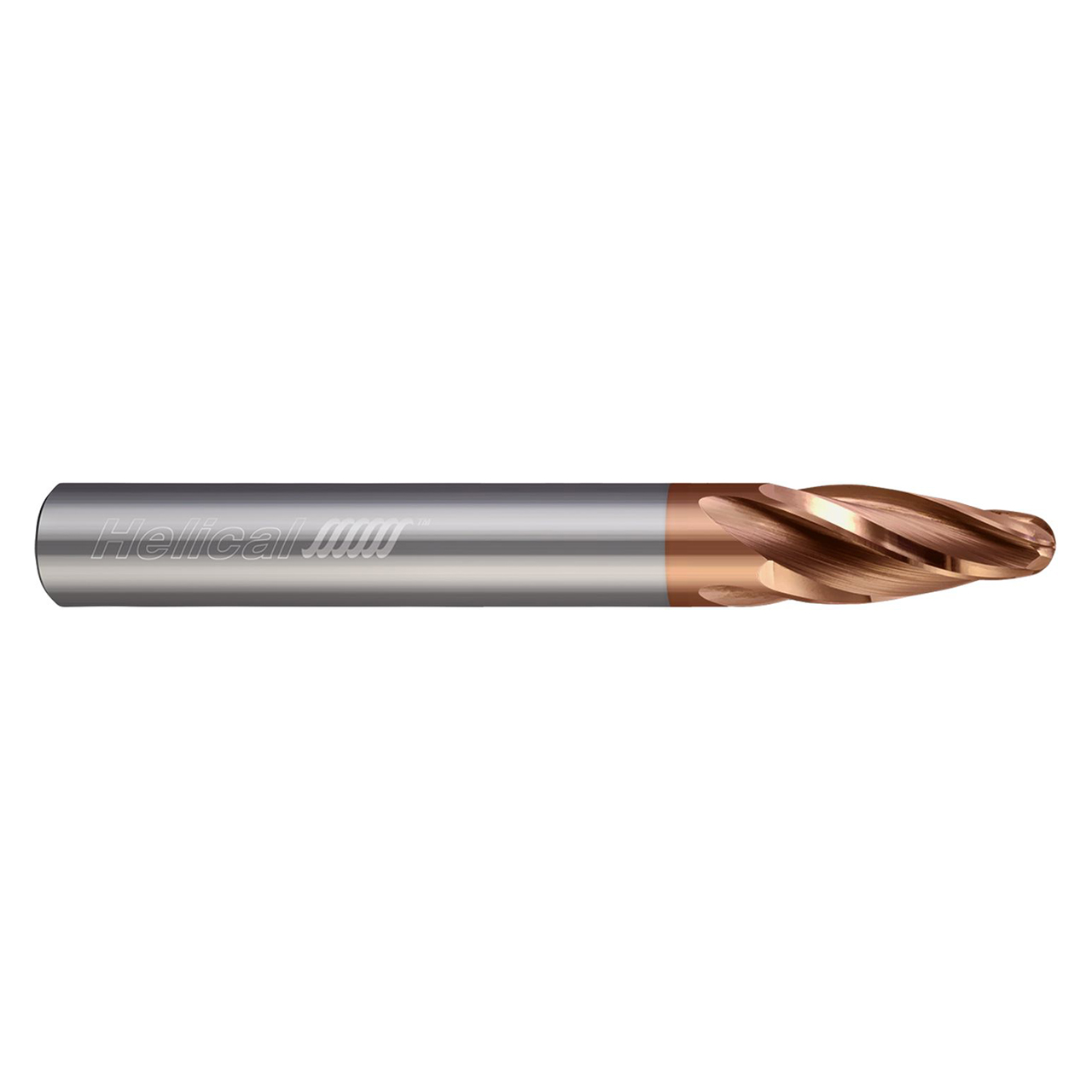

This 4 flute Multi-Axis Finisher is engineered with a taper form with three tangential radious, allowing for outstanding performance and vastly improved surface finish in stainless steel, high temperature alloys, and other ferrous materials.
Features:- Specially defined profile for massive reductions in cycle time and vastly improved surface finish
- Taper form with three tangential radii and offered in a variety of angles for maximum performance and optimal clearance angle for any workpiece
- 4 flute geometry specifically designed for semi-finishing and finishing in stainless steel, high temperature alloys, and other ferrous materials
- Center cutting
- h6 shank tolerance for high precision tool holders
- Tplus coating offers high hardness for improved tool life and increased edge strength in difficult-to-machine materials
- Solid carbide
- CNC ground in the USA
Product Specifications
| Tool Number | 86474 |
| Cutter Diameter (Inch) | 0.6250" |
| Length of Cut (Inch) | 1.3766" |
| Overall Length (Inch) | 3.5000" |
| Radius (Inch) | 5.0000" |
| Tip Radius (Inch) | 0.1563" |
| No of Flutes | 4 |
| LOC Multiple | 2.2x |
| Benefit Multiple | 4x |
| Shank Diameter (Inch) | 0.6250" |
| Shank Length (Inch) | 2.1234" |
| Coating | Tplus |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Helical Solutions
Cutter Diameter (Inch):
5/8"
Cutter Diameter (Decimal Inch):
0.6250"
Length of Cut (Decimal Inch):
1.3766"
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5000"
Radius (Inch):
5"
Radius (Decimal Inch):
5.0000"
Number of Flutes:
4
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Length (Decimal Inch):
2.1234"
Finish/Coating:
TPLUS
Center Cutting:
Yes
Through Coolant:
No
