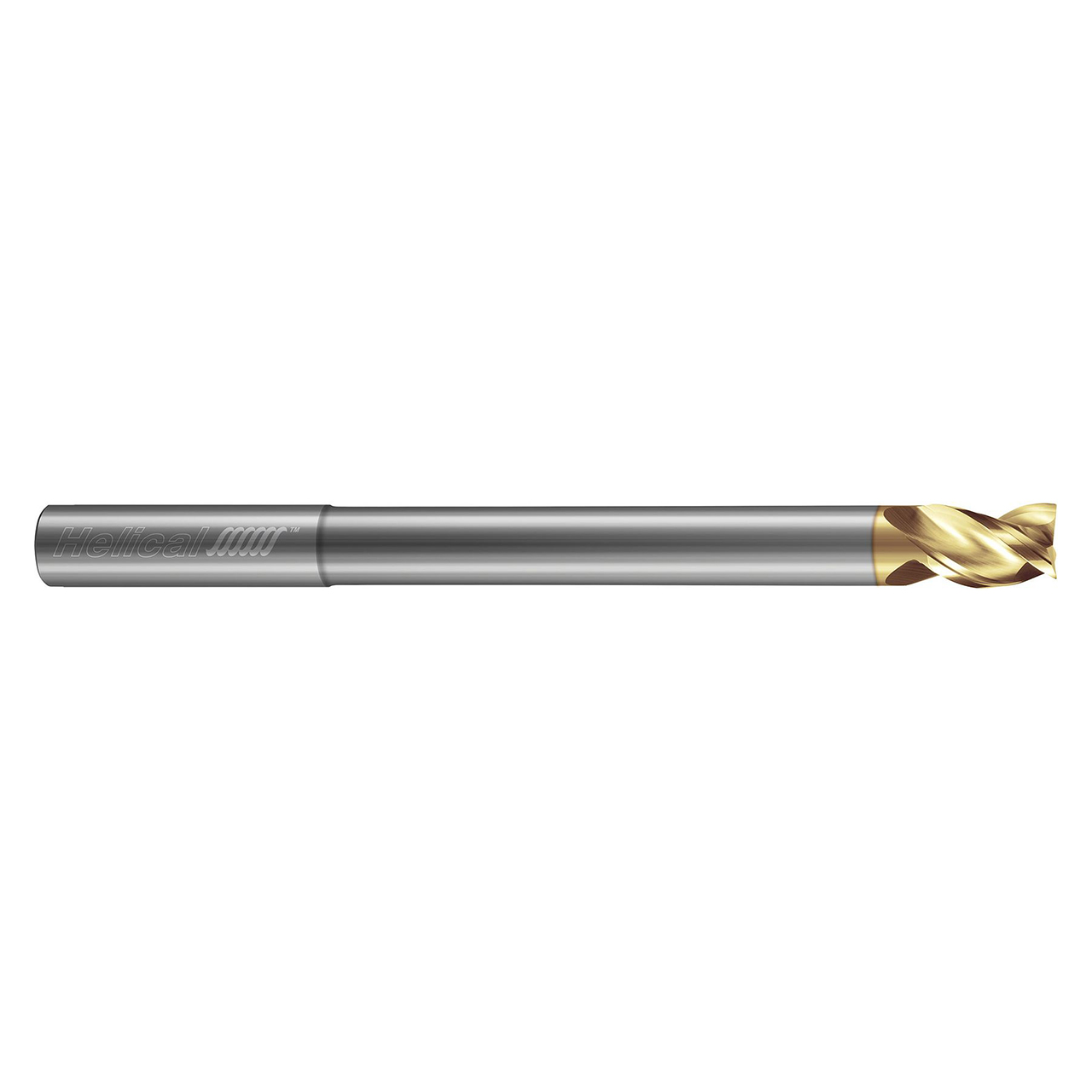

Helical Solutions 86502 | H40ALV-RN-R-30312 0.3125" Diameter x 0.3125" Shank x 0.4375" LOC x 4.0000" OAL 3 Flute Uncoated Carbide Square End Mill

$45.70
SKU:
25214913
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

The H40ALV-3's end geometry contains a wiper flat, designed to swiftly remove scallop marks on the floor of a part to leave a superior finish in aluminum and non-ferrous alloys. This feature is included on all square profiles and where the tool's corner radius does not exceed 20 percent of the cutter diameter.

Features:
  • Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
  • Designed with a specialized combination of features for excellent performance in roughing and finishing applications
  • Unique "3 teeth-to-center" end geometry for ramping applications
  • Wiper flat design leaves superior floor finish
  • Excellent performance in High Efficiency Milling (HEM)
  • Center cutting
  • h6 shank tolerance for high precision tool holders
  • Uncoated tool offers an excellent option for aluminum finishing applications
  • Zplus coating offers higher hardness and added lubricity for maximum performance
  • Solid carbide end mills
  • CNC ground in the USA

Product Specifications
Tool Number86502
Cutter Diameter (Inch)0.3125"
Neck Diameter (Inch)0.2960"
Length of Cut (Inch)0.4375"
Overall Reach (Inch)1.7500"
Overall Length (Inch)4.0000"
No of Flutes3
LOC Multiple1.4x
Shank Diameter (Inch)0.3125"
Shank Length (Inch)2.2500"
CoatingUn
