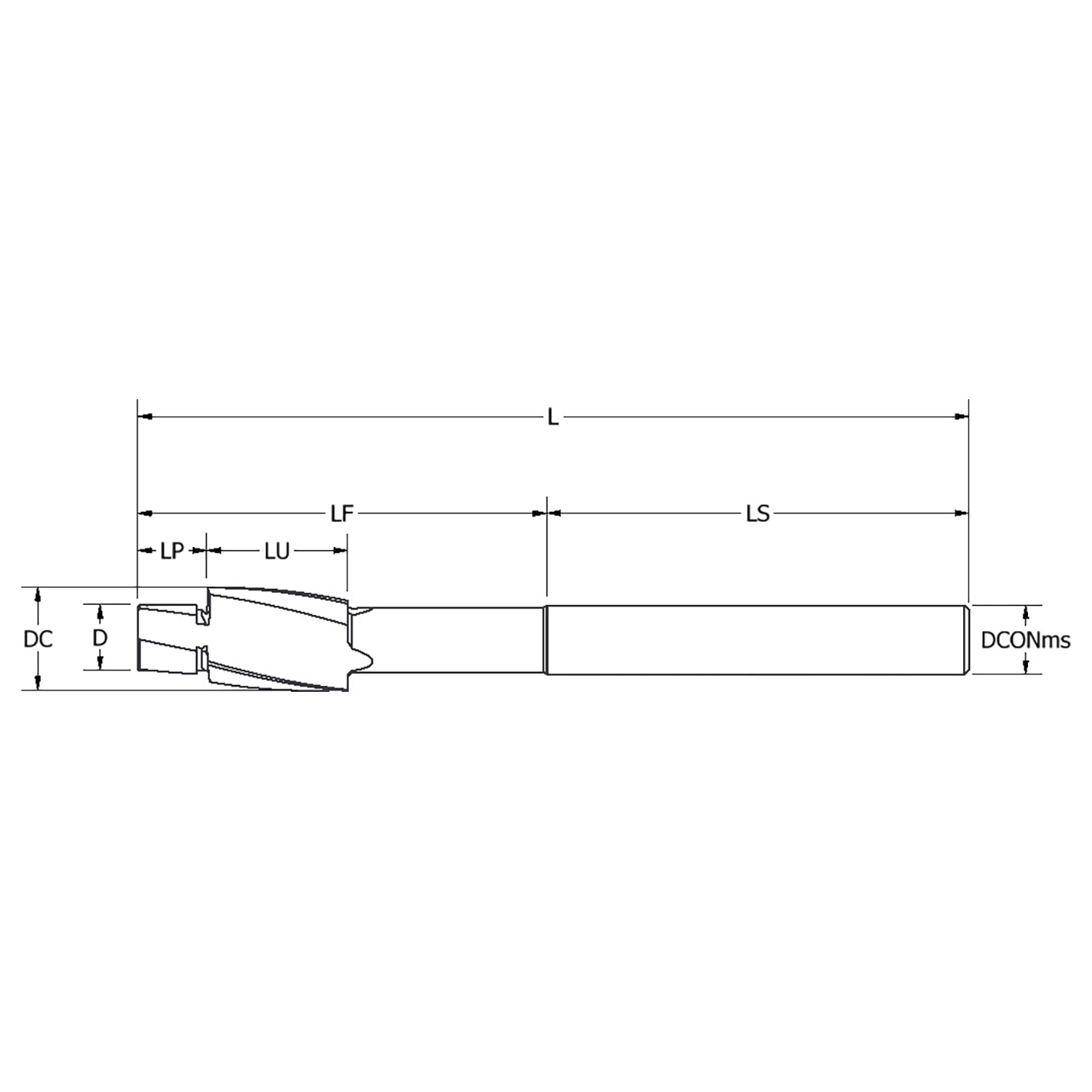

| # Manufacturer Number | 902-000-030 |
| Cutting Diameter (Decimal Inch) | 0.7890" |
| Connection Diameter (Decimal Inch) | 0.5000" |
| Overall Length (Decimal Inch) | 6.0000" |
| Functional Length (Decimal Inch) | 2.9532" |
| Length of Shank (Decimal Inch) | 0.5000" |
| Length of Point / Pilot (Decimal Inch) | 0.5000" |
| Usable Length (Decimal Inch) | 1.0156" |
| Cutting Edge Count | 3 |
| Tool Material | HSS-Co |
| Connection Type | Shank |
| Cutting Direction | Right Hand |
| Product Type | Solid Pilot Counterbore |
