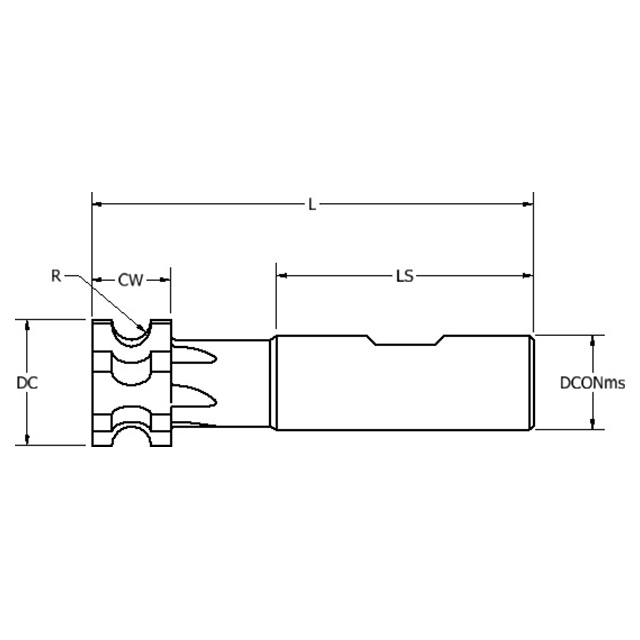

Product Specifications
| Manufacturer Part Number | 905-000-028 |
| Cutting Diameter (Decimal Inch) | 1.500" |
| Cutting Width (Decimal Inch) | 1.000" |
| Connection Diameter (Decimal Inch) | 0.750" |
| Overall Length (Decimal Inch) | 4.188" |
| Length of Shank (Decimal Inch) | 2.250" |
| Cormer Radius (Decimal Inch) | 0.375" |
| Cutting Edge Count | 4 |
| Cutting Direction | Right Hand |
| Material | HSS |
| Coating | TiN |
| Connection Type | Shank |
| Product Type | Concave Radius Cutter |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Keo
Connection Type:
Shank
Radius (Inch):
3/8"
Radius (Decimal Inch):
0.3750"
Radius (mm):
9.53mm
Cutting Width (Inch):
1"
Cutting Width (Decimal Inch):
1.0000"
Cutting Width (mm):
25.40mm
Overall Length (Inch):
4-3/16"
Overall Length (Decimal Inch):
4.1880"
Overall Length (mm):
106.38mm
Material:
HSS
Finish/Coating:
TiN
interval quantity:
1
