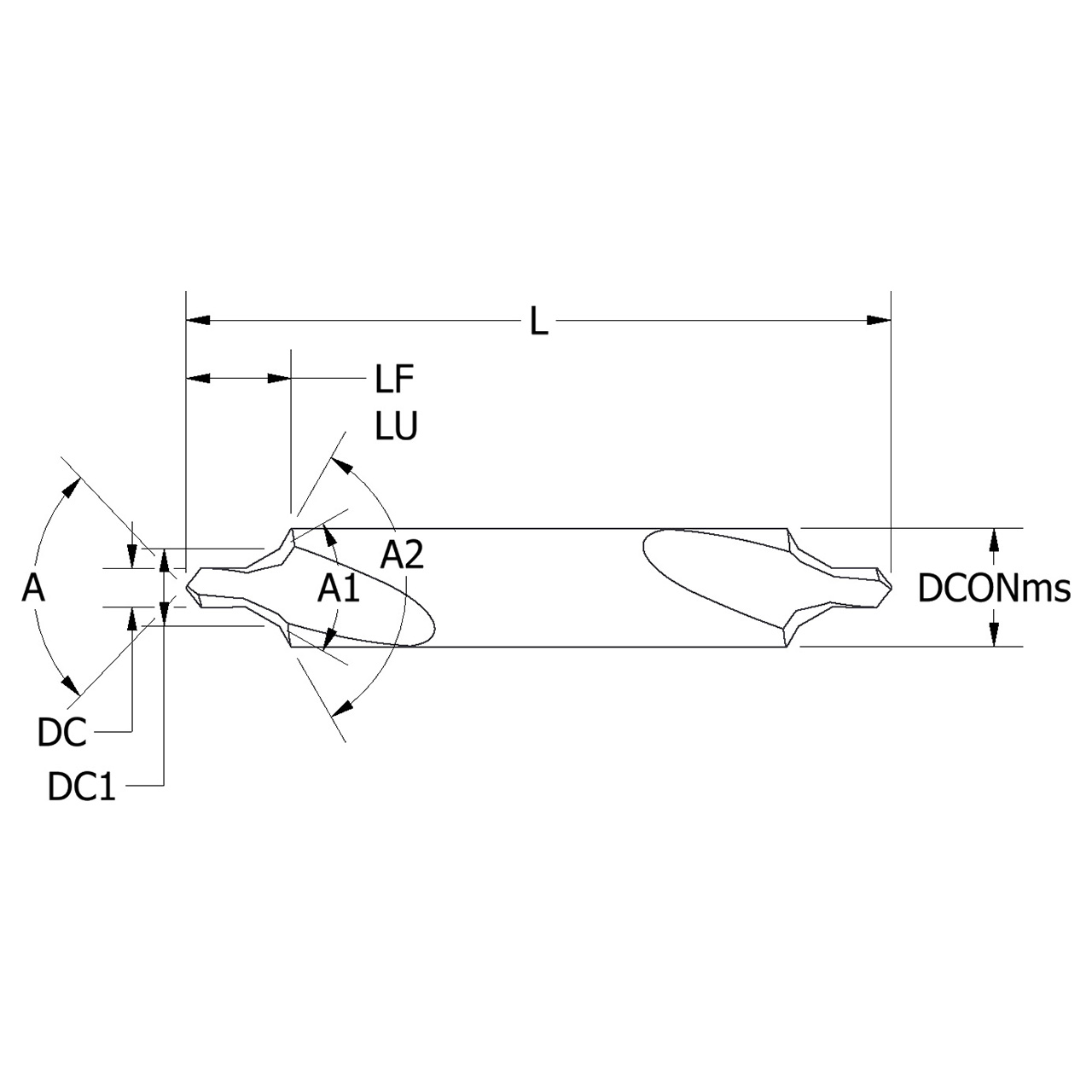

| Manufacturer Part Number | 906-000-427 |
| Cutting Diameter (Decimal Inch) | 0.047" |
| Cutting Diameter 1 (Decimal Inch) | 0.100" |
| Connection Diameter (Decimal Inch) | 0.125" |
| Overall Length (Decimal Inch) | 1.250" |
| Functional Length (Decimal Inch) | 0.112" |
| Length of Shank (Decimal Inch) | 0.625" |
| Usable Length (Decimal Inch) | 0.112" |
| Cutting Edge Count | 2 |
| Included Angle (Degree) | 118 Degree |
| Included Angle 1 (Degree) | 60 Degree |
| Included Angle 2 (Degree) | 120 Degree |
| Cutting Direction | Right Hand |
| Material | Carbide |
| Connection Type | Shank |
| Product Type | Combination Drill & Countersink |
