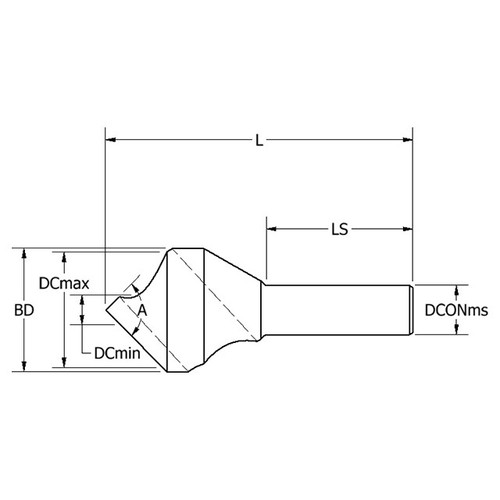

Product Specifications
| Manufacturer Part Number | 919-000-203 |
| Body Diameter (Decimal Inch) | 0.312" |
| Connection Diameter (Decimal Inch) | 0.250" |
| Maximum Cut of Diameter (Decimal Inch) | 0.281" |
| Minimum Cut of Diameter (Decimal Inch) | 0.094" |
| Overall Length (Decimal Inch) | 1.620" |
| Length of Shank (Decimal Inch) | 1.250" |
| Cutting Edge Count | 1 |
| Included Angle (Degree) | 82 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-Co |
| Coating | TiN |
| Connection Type | Shank |
| Product Type | Countersink |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Keo
Minimum Diameter of Cut (Inch):
3/32"
Minimum Diameter of Cut (Decimal Inch):
0.0940"
Minimum Diameter of Cut (mm):
2.39mm
Included Angle:
82 Degree
Material:
HSS-Co
Finish/Coating:
TiN
interval quantity:
1
