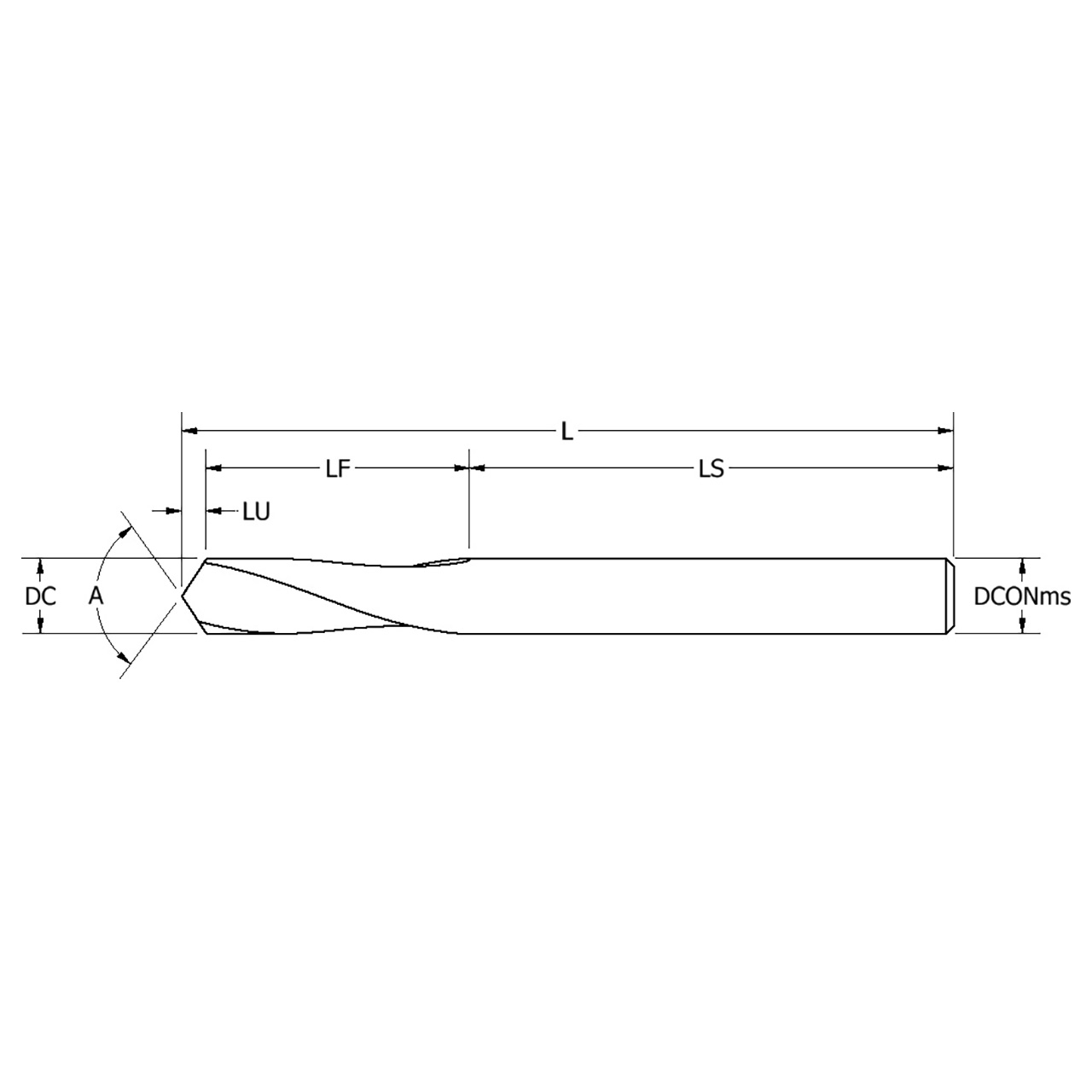

| Manufacturer Part Number | 956-000-089 |
| Cutting Diameter (Decimal Inch) | 0.750" |
| Connection Diameter (Decimal Inch) | 0.750" |
| Overall Length (Decimal Inch) | 8.199" |
| Functional Length (Decimal Inch) | 2.074" |
| Length of Shank (Decimal Inch) | 5.926" |
| Usable Length (Decimal Inch) | 0.199" |
| Cutting Edge Count | 2 |
| Included Angle (Degree) | 118 Degree |
| Connection Type | Shank |
| Cutting Direction | Right Hand |
| Material | HSS-Co |
| Product Type | Spotting Drill |
