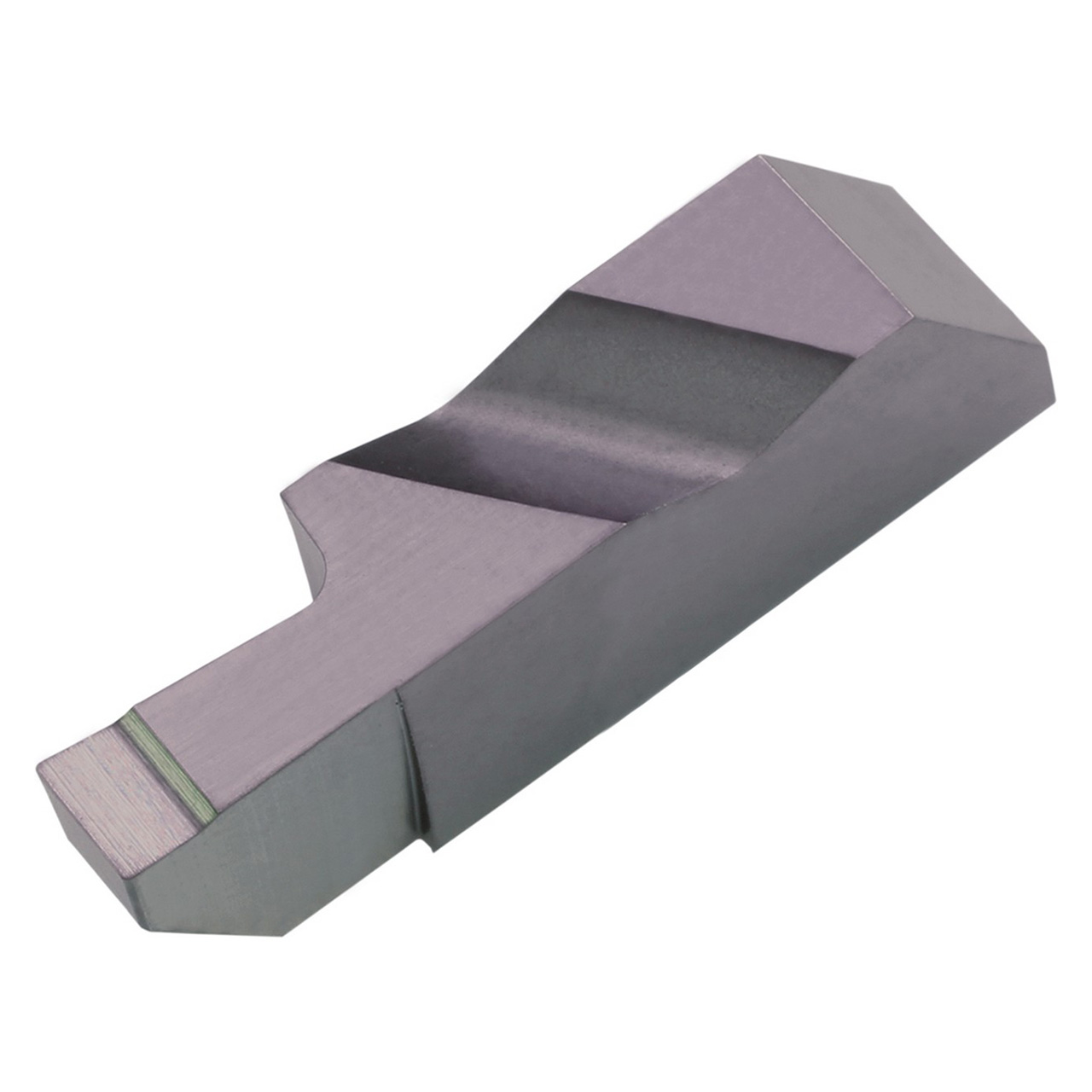

Features:
- Insert for external grooving, internal large diameter shallow grooving
- 1 Cutting edge
- Hard TiCN base PVD coated super micro-grain carbide
- Application: Low cutting speed, precise cutting with sharp edge
Product Specifications
| Tool Number | 8850398 |
| Max Depth of Cut (Decimal Inch) | 0.2500" |
| Max Depth of Cut (mm) | 6.35mm |
| Cutting Width (Decimal Inch) | 0.0941" |
| Cutting Width (mm) | 2.39mm |
| Cutting Width Minimum (Decimal Inch) | 0.0941" |
| Cutting Width Minimum (mm) | 2.39mm |
| Cutting Width Maximum (Decimal Inch) | 0.0941" |
| Cutting Width Maximum (mm) | 2.39mm |
| Insert Length (Decimal Inch) | 0.9902" |
| Insert Length (mm) | 25.15mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 0.344" |
| Thickness (mm) | 8.74mm |
| Application | External Grooving | Internal Large Diameter Shallow Grooving |
| Coating Process | PVD |
| Cutting Range | Finishing Medium |
| Hand | Right Hand |
| Insert Holding Method | Clamp |
| Insert Grade | PR930 |
| Insert Size | 3094 |
| Material | Carbide |
| Number of Cutting Edges | 1 |
| Primary Workpiece Material | Steel (P) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
KCGDP
Insert Size:
3094
Material:
Carbide;Cutting Width (Decimal Inch)=0.0941"""
Cutting Width (mm):
2.39mm
Maximum Depth of Cut (Decimal Inch):
0.2500"
Maximum Depth of Cut (mm):
6.35mm
Manufacturer's Grade:
PR930
Finish/Coating:
PVD
