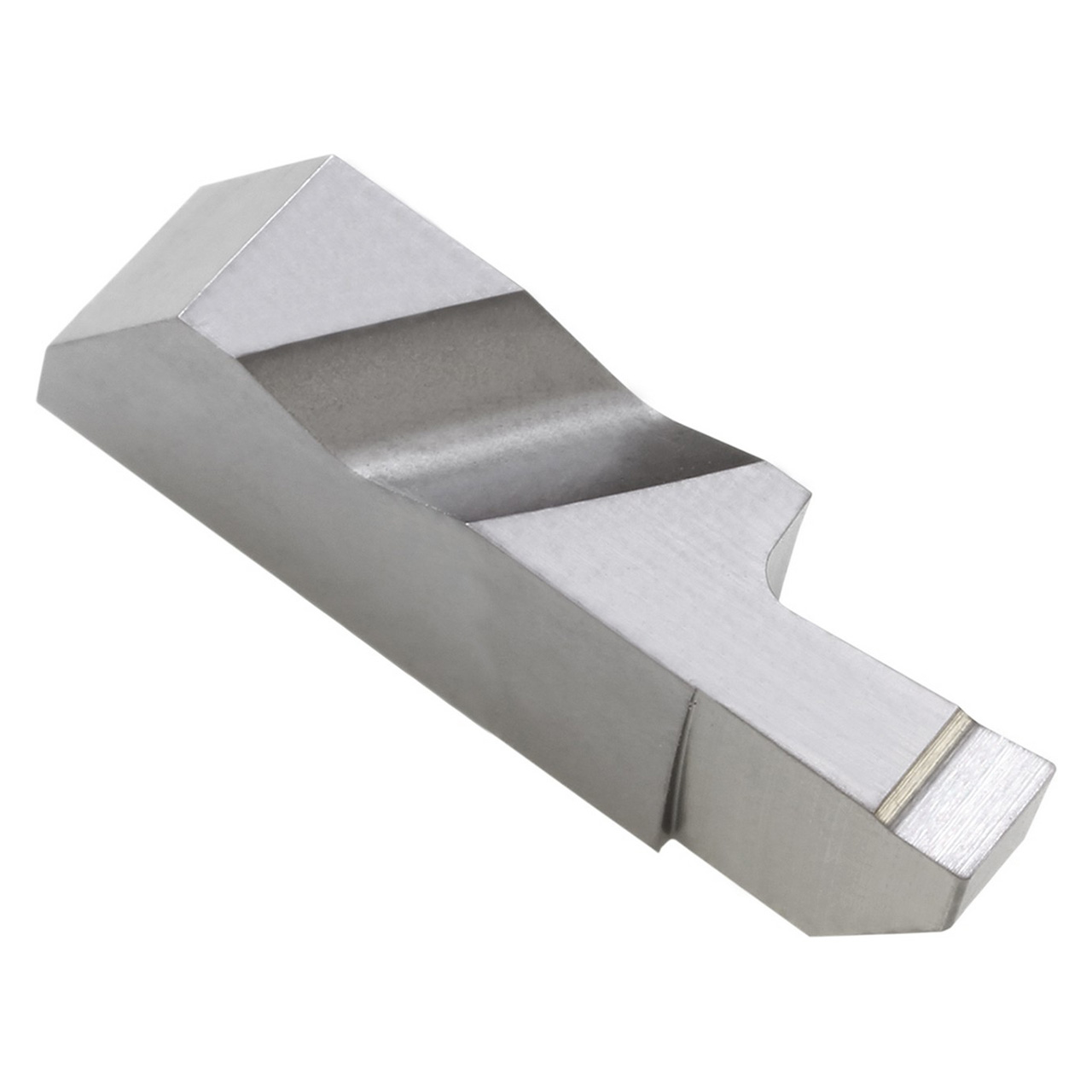

Kyocera Precision Tools 8868104 | KCGDP3094L TN60 0.0941" Cutting width x 0.9902" Insert Length Uncoated Cermet Grooving Insert

$16.75
Brand:
Kyocera Precision Tools
Insert Style:
KCGDP
Insert Size:
3094
Material:
Cermet;Cutting Width (Decimal Inch)=0.0941"""
Cutting Width (mm):
2.39mm
Maximum Depth of Cut (Decimal Inch):
0.2500"
Maximum Depth of Cut (mm):
6.35mm
Manufacturer's Grade:
TN60
Finish/Coating:
Uncoated
SKU:
23222288
Weight:
0.25 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external grooving, internal large diameter shallow grooving
  • 1 Cutting edge
  • Good balance of wear resistance and toughness
  • Application: Grooving and threading of steel

Product Specifications
Tool Number8868104
Max Depth of Cut (Decimal Inch)0.2500"
Max Depth of Cut (mm)6.35mm
Cutting Width (Decimal Inch)0.0941"
Cutting Width (mm)2.39mm
Cutting Width Minimum (Decimal Inch)0.0941"
Cutting Width Minimum (mm)2.39mm
Cutting Width Maximum (Decimal Inch)0.0941"
Cutting Width Maximum (mm)2.39mm
Insert Length (Decimal Inch)0.9902"
Insert Length (mm)25.15mm
Corner Radius (Inch)0.008"
Corner Radius (mm)0.20mm
Thickness (Inch)0.344"
Thickness (mm)8.74mm
ApplicationExternal Grooving | Internal Large Diameter Shallow Grooving
Coating ProcessUncoated
Cutting RangeFinishing
HandLeft Hand
Insert Holding MethodClamp
Insert GradeTN60
Insert Size3094
MaterialCermet
Number of Cutting Edges1
Primary Workpiece MaterialSteel (P)
Usage ClassificationContinuous
