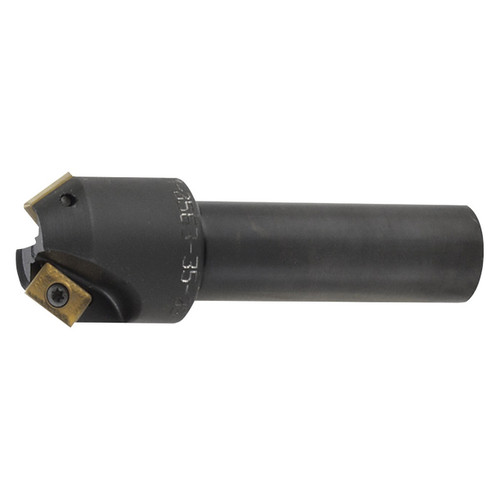

Features:
- For facing, chamfering, countersinking applications
- Compatible with (2) XPMT090208 style inserts
Product Specifications
| EDP Number | OTM86114 |
| Maximum Depth of Cut (Decimal Inch) | 0.0800" |
| Cutting Width (Decimal Inch) | 0.3272" |
| Cutting Width (mm) | 8.31mm |
| Cutting Width Minimum (Decimal Inch) | 0.3272" |
| Cutting Width Minimum (mm) | 8.31mm |
| Cutting Width Maximum (Decimal Inch) | 0.3272" |
| Cutting Width Maximum (mm) | 8.31mm |
| Cutting Diameter (Decimal Inch) | 1.2169 - 1.2169" |
| Cutting Diameter (mm) | 30.91 - 30.91mm |
| Cutting Diameter Maximum (Decimal Inch) | 1.2169" |
| Cutting Diameter Maximum (mm) | 30.91mm |
| Connection Diameter (Decimal Inch) | 0.6252" |
| Connection Diameter (mm) | 15.88mm |
| Tool Entering Angle ( Degree) | 75 Degree |
| Application | Chamfering | Countersinking | Facing |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 2 |
| Number of Inserts | 2 |
| Shank Type | Standard Length |
