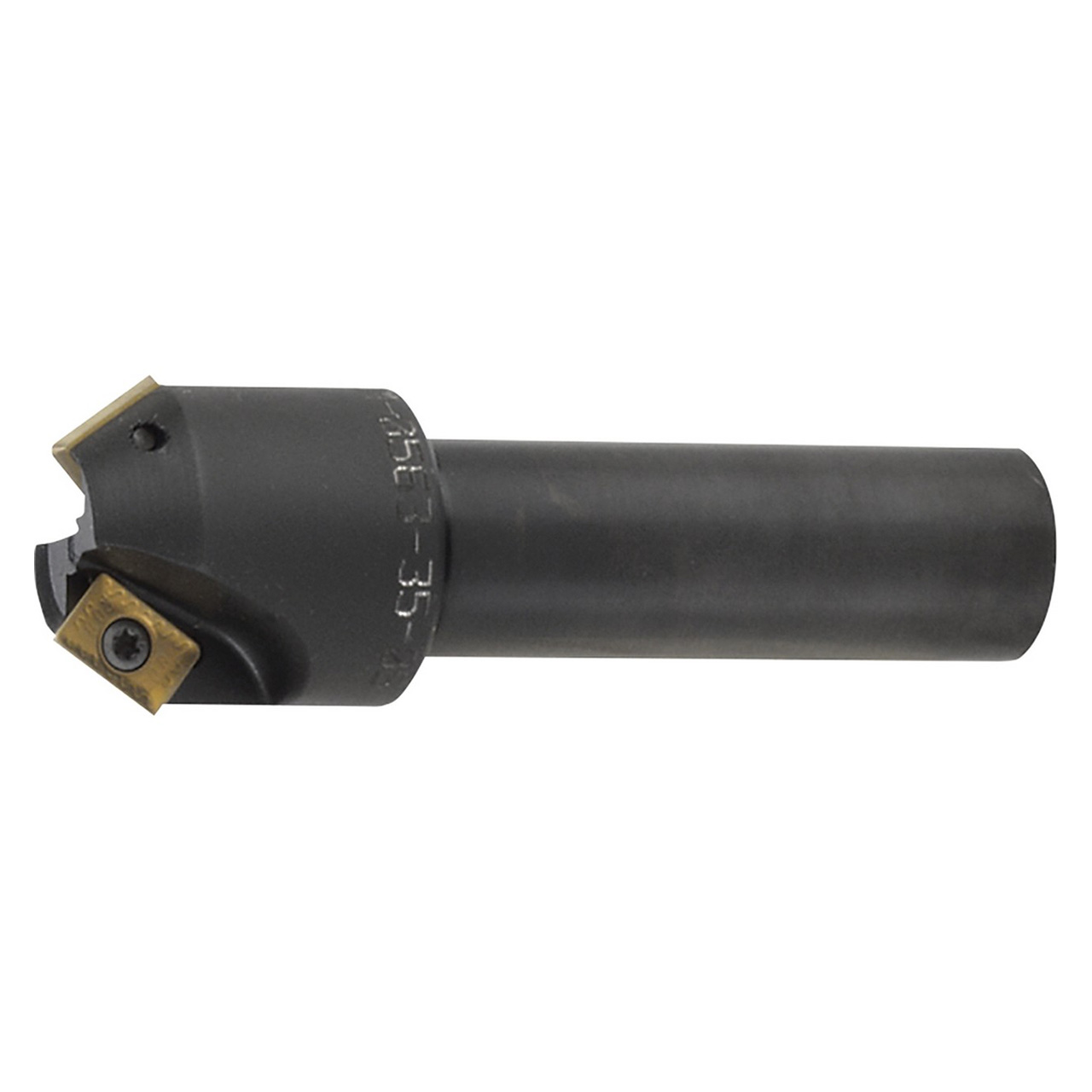

Kyocera Precision Tools OTM86135 | CM100070 2.0941-2.0941" Diameter x 0.1930" Maximum Depth of Cut 2 Flute Steel Indexable Chamfering End Mill

$288.89 $239.78
(You save $49.11)
Brand:
Kyocera Precision Tools
Maximum Cutting Diameter (Inch):
2-3/32"
Maximum Cutting Diameter (Decimal Inch):
2.0941"
Maximum Cutting Diameter (mm):
53.19mm
Lead Angle:
70 Degree
Shank Type:
Standard Length
Number of Flutes:
2
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Merchandising Boost Rule:
Yes
interval quantity:
1
SKU:
23222448
UPC:
Weight:
0.95 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Features:

  • For facing, chamfering, countersinking applications
  • Compatible with (2) XPMT15T3 style inserts

Product Specifications
EDP NumberOTM86135
Maximum Depth of Cut (Decimal Inch)0.1930"
Maximum Depth of Cut (mm)12.73mm
Cutting Width (Decimal Inch)0.5469"
Cutting Width (mm)13.89mm
Cutting Width Minimum (Decimal Inch)0.5469"
Cutting Width Minimum (mm)13.89mm
Cutting Width Maximum (Decimal Inch)0.5469"
Cutting Width Maximum (mm)13.89mm
Cutting Diameter (Decimal Inch)2.0941 - 2.0941"
Cutting Diameter (mm)53.19 - 53.19mm
Cutting Diameter Maximum (Decimal Inch)2.0941"
Cutting Diameter Maximum (mm)53.19mm
Connection Diameter (Decimal Inch)0.7500"
Connection Diameter (mm)19.05mm
Tool Entering Angle ( Degree)70 Degree
ApplicationChamfering | Countersinking | Facing
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts2
Shank TypeStandard Length

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
