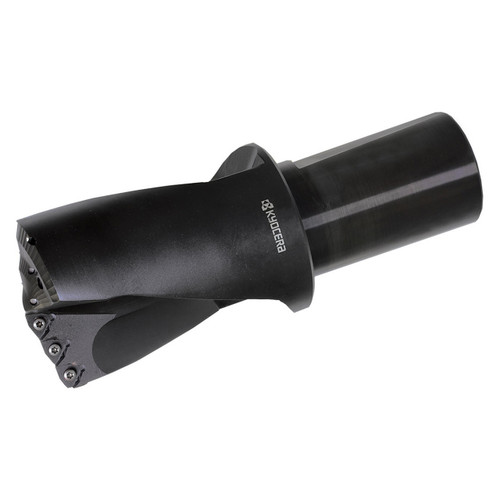

Features:
- Sharp cutting with enhanced chip evacuation
- Superior fracture resistance and long tool life with MEGACOAT NANO coating technology
- Flute designs optimized for maximum rigidity and good chip evacuation
- Patented swept back design enables drilling of stacked plates and welded assemblies, reduces slug formation, and provides excellent chip control
Product Specifications
| EDP Number | OTM86303 |
| Cutting Diameter (Decimal Inch) | 2.1252" |
| Cutting Diameter (mm) | 53.98mm |
| Cutting Diameter Minimum (Decimal Inch) | 2.1252" |
| Cutting Diameter Minimum (mm) | 53.98mm |
| Cutting Diameter Maximum (Decimal Inch) | 2.1252" |
| Cutting Diameter Maximum (mm) | 53.98mm |
| Connection Diameter (Decimal Inch) | 1.5000" |
| Connection Diameter (mm) | 38.10mm |
| Usable Length (Decimal Inch) | 3.5000" |
| Usable Length (mm) | 88.90mm |
| Application | Drilling |
| Coolant Through (Yes/No) | Yes |
| Hand | Right Hand |
| Insert Holding Method | Screw |
| Material | Steel |
| Number of Flutes | 4 |
| Number of Inserts | 4 |
| Shank Type | Standard Length |
| Weldon Flat | Yes |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Drill Style:
DR
Drill Diameter (Decimal Inch):
2.1252
Drill Diameter (mm):
53.98
Maximum Drill Depth (Decimal Inch):
3.5000
Maximum Drill Depth (mm):
88.90
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.5000
Shank Diameter (mm):
38.10
Through Coolant:
Yes
