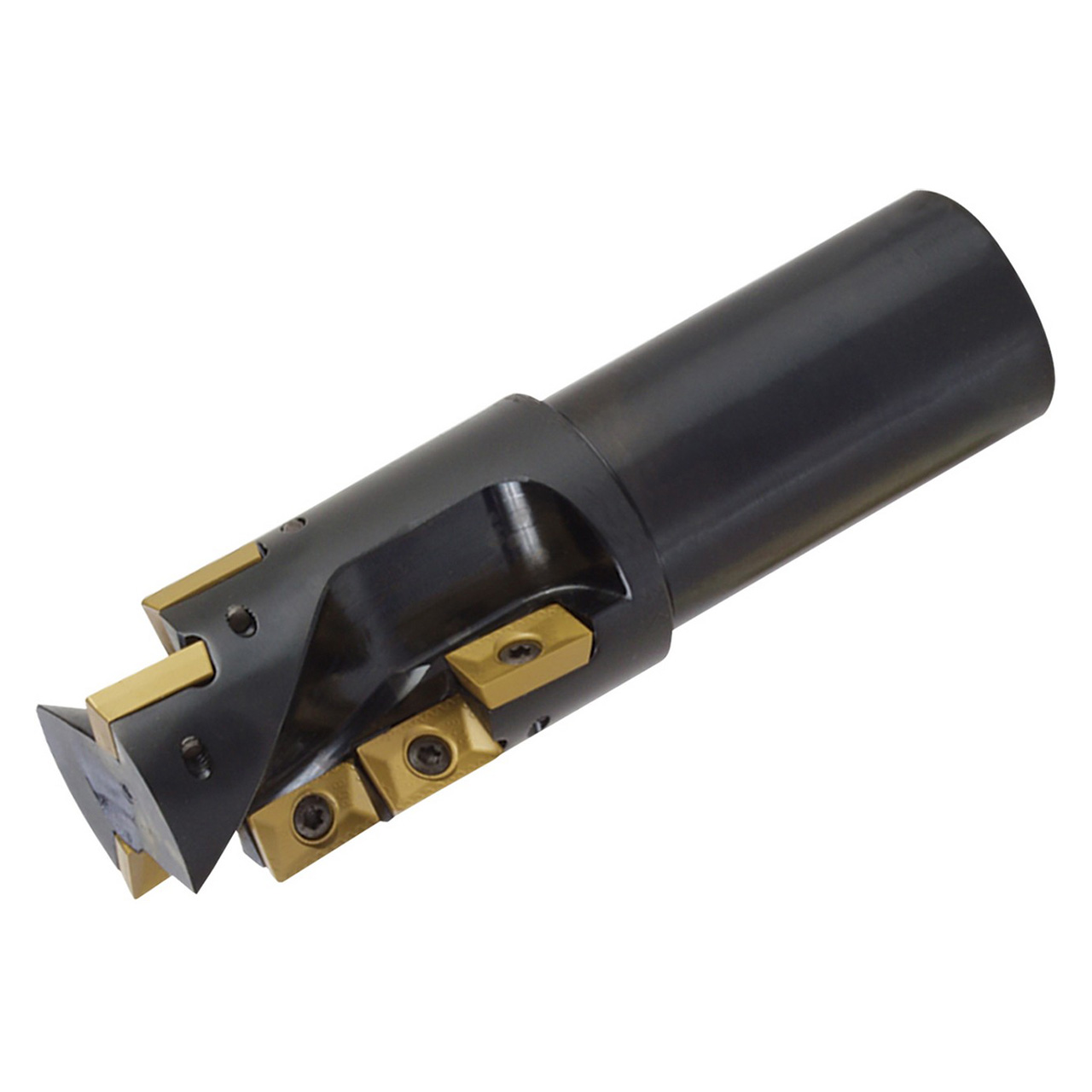

Kyocera Precision Tools OTM86414 | EM15002000LE 1.5000" Diameter x 90 Degree Angle 2 Flute Steel Indexable End Mill

$1,102.07 $914.72
(You save $187.35)
Brand:
Kyocera Precision Tools
Cutting Diameter (Inch):
1-1/2"
Cutting Diameter (Decimal Inch):
1.5000"
Cutting Diameter (mm):
38.10mm
Maximum Depth of Cut (Inch):
2"
Maximum Depth of Cut (Decimal Inch):
2.0000"
Maximum Depth of Cut (mm):
50.8mm
Shank Type:
Standard Length
Shank Diameter (Decimal Inch):
1.2500"
Shank Diameter (mm):
31.75mm
Number of Cutter Inserts:
8
Toolholder Style:
EM
interval quantity:
1
SKU:
23222641
UPC:
Weight:
1.70 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Right-Hand, long edge, 90 Degree lead angle end mill
  • Shouldering, facing, slotting applications
  • Compatible with XPMT15T3 (bottom pockets), XPMT15T308 (side pockets) inserts

Product Specifications
EDP NumberOTM86414
Maximum Depth of Cut (Decimal Inch)2.0000"
Maximum Depth of Cut (mm)16.26mm
Cutting Diameter (Decimal Inch)1.5000"
Cutting Diameter (mm)38.10mm
Cutting Diameter Minimum (Decimal Inch)1.5000"
Cutting Diameter Minimum (mm)38.10mm
Cutting Diameter Maximum (Decimal Inch)1.5000"
Cutting Diameter Maximum (mm)38.10mm
Connection Diameter (Decimal Inch)1.2500"
Connection Diameter (mm)31.75mm
Tool Entering Angle ( Degree)90 Degree
ApplicationFacing | Shouldering | Slotting
HandRight Hand
Insert Holding MethodScrew
MaterialSteel
Number of Flutes2
Number of Inserts8
Shank TypeStandard Length
