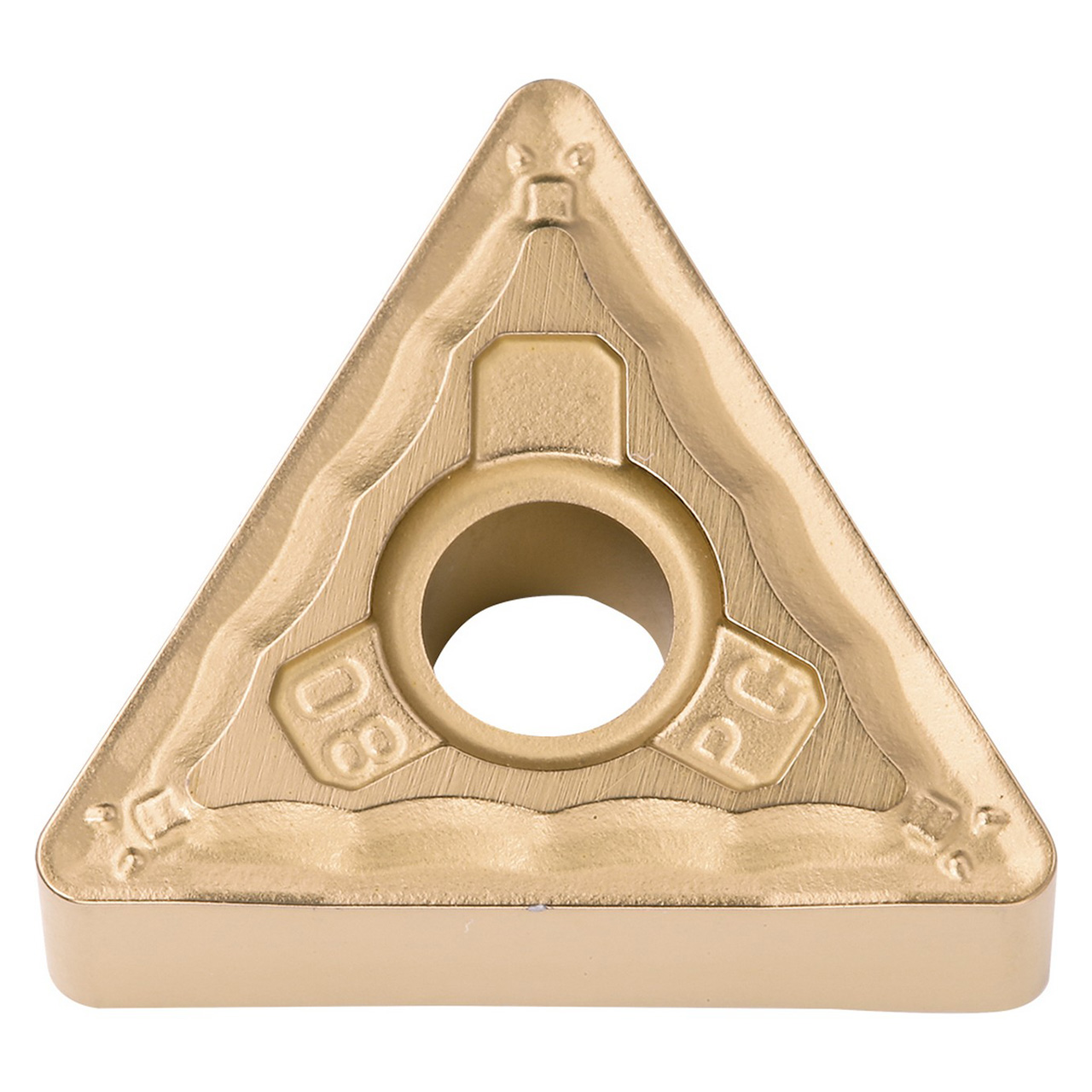

Kyocera Precision Tools TAA06260 | TNMG332PG CA510 3/8" Circle Diameter x 3/16" Thickness CVD Coated Carbide Indexable Turning Insert

$6.66
Brand:
Kyocera Precision Tools
Insert Style:
TNMG
Insert Size:
332
Material:
Carbide;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1874"
Thickness (mm):
4.76mm
Corner Radius (Inch):
1/32"
Corner Radius (Decimal Inch):
0.0315"
Corner Radius (mm):
0.80mm
Manufacturer's Grade:
CA510
SKU:
23222980
Weight:
0.18 LBS
Minimum Purchase:
10 units
Shipping:
Calculated at Checkout

Features:

  • Insert for external turning, facing, copying, chamfering, boring
  • 6 Cutting edges
  • Special substrate with thermal deformation resistance along with a thick and tough film coating for wear resistance
  • Application: High speed and high efficiency steel machining

Product Specifications
EDP NumberTAA06260
Inscribed Circle (Inch)3/8"
Inscribed Circle (mm)9.525mm
Corner Radius (Inch)1/32"
Corner Radius (mm)0.80mm
Thickness (Inch)3/16"
Thickness (mm)4.76mm
ApplicationBoring | Chamfering | Copying | External Turning | Facing
ChipbreakerPG
Coating ProcessCVD
Cutting RangeMedium Roughing
HandNeutral
Insert GradeCA510
Insert Holding MethodScrew or Clamp
Insert Shape60 Degree Triangle
Insert Included Angle ( Degree)60 Degree
Insert Size332
MaterialCarbide
Number of Cutting Edges6
Primary Workpiece MaterialCarbon/Alloy Steel (P)
Usage ClassificationContinuous
