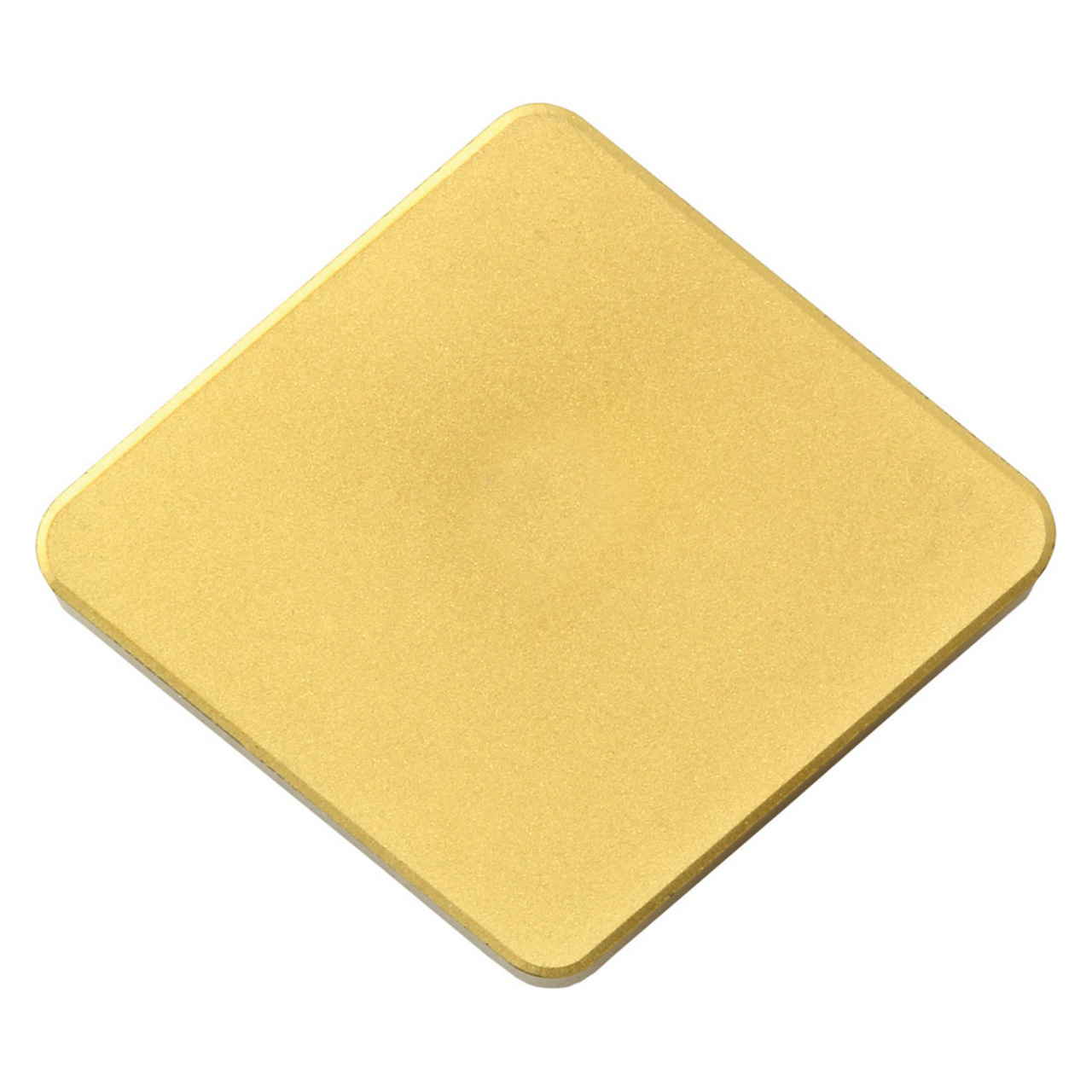

Features:
- Insert for external turning, facing
- 2 Cutting edges
- TiN coated solid CBN
- Application: Heavy duty, interrupted cutting and finishing of hardened steel, hardened roll steel and cast iron
Product Specifications
| EDP Number | TBP01001 |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Corner Radius (Inch) | 3/64" |
| Corner Radius (mm) | 1.20mm |
| Thickness (Inch) | 1/8" |
| Thickness (mm) | 3.18mm |
| Application | External Turning | Facing |
| Coating Process | Uncoated |
| Cutting Range | Medium Roughing |
| Hand | Neutral |
| Insert Grade | KBN900 |
| Insert Holding Method | Clamp |
| Insert Shape | 80 Degree Diamond |
| Insert Included Angle ( Degree) | 80 Degree |
| Insert Size | 323 |
| Material | CBN |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Gray Cast Iron (K)|(K) Nodular Cast Iron|Hardened Materials (H) |
| Usage Classification | Light Interruption |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Insert Style:
CNM
Insert Size:
323
Material:
CBN;Inscribed Circle (Inch)=3/8"""
Inscribed Circle (Decimal Inch):
0.3750"
Inscribed Circle (mm):
9.525mm
Thickness (Inch):
1/8"
Thickness (Decimal Inch):
0.1252"
Thickness (mm):
3.18mm
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0157"
Corner Radius (mm):
1.20mm
Manufacturer's Grade:
KBN900
