Features:
| EDP Number | TBZ02125 |
| Inscribed Circle (Inch) | 3/8" |
| Inscribed Circle (mm) | 9.525mm |
| Corner Radius (Inch) | 0.008" |
| Corner Radius (mm) | 0.20mm |
| Thickness (Inch) | 5/32" |
| Thickness (mm) | 3.97mm |
| Application | Back Boring | Copying | External Turning |
| Coating Process | PVD |
| Cutting Range | Medium |
| Hand | Neutral |
| Insert Grade | KBN25M |
| Insert Holding Method | Screw or Clamp |

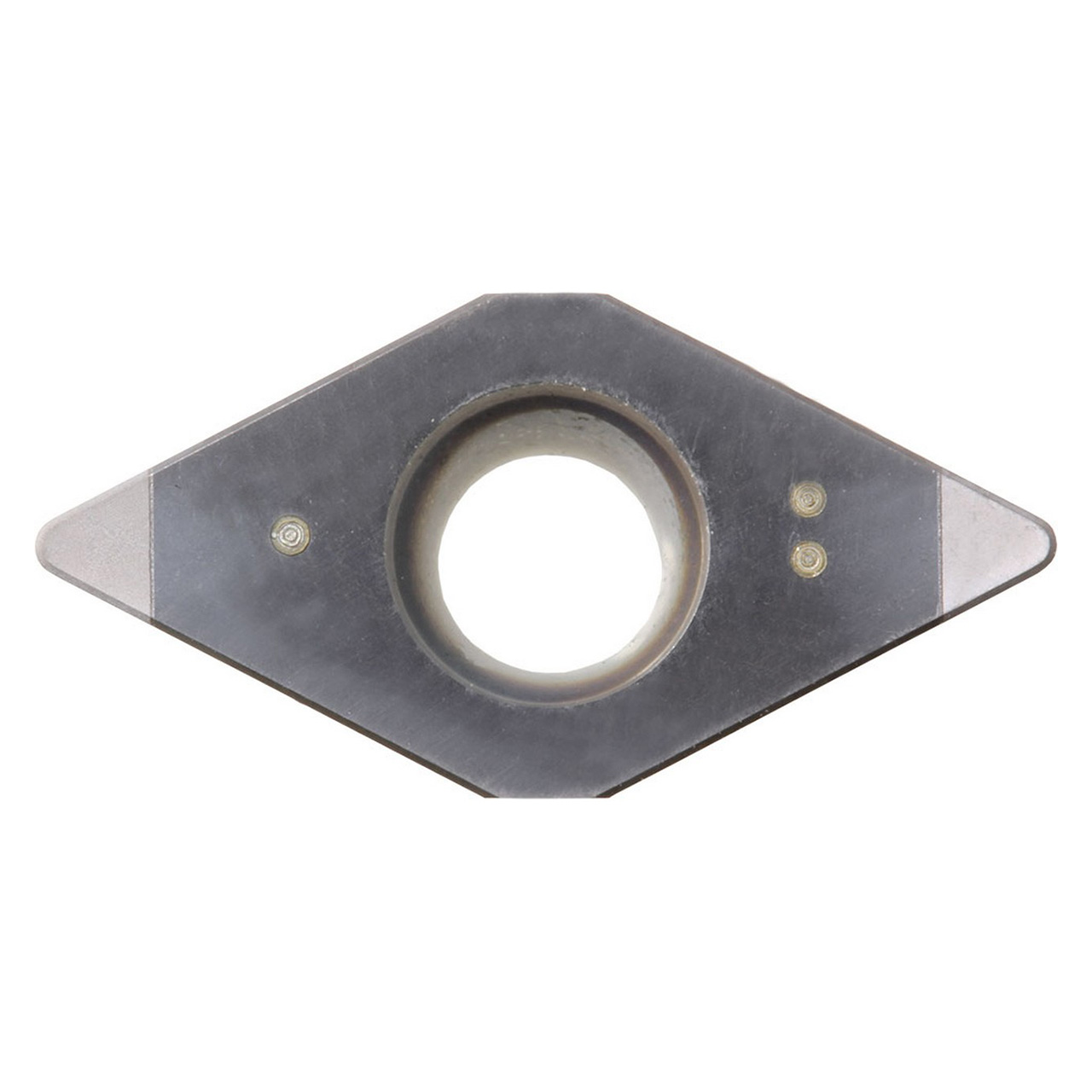

| Insert Shape | 55 Degree Diamond |
| Insert Included Angle ( Degree) | 55 Degree |
| Insert Size | 32505 |
| Material | CBN |
| Number of Cutting Edges | 2 |
| Primary Workpiece Material | Hardened Materials (H) |
| Usage Classification | Light Interruption |
