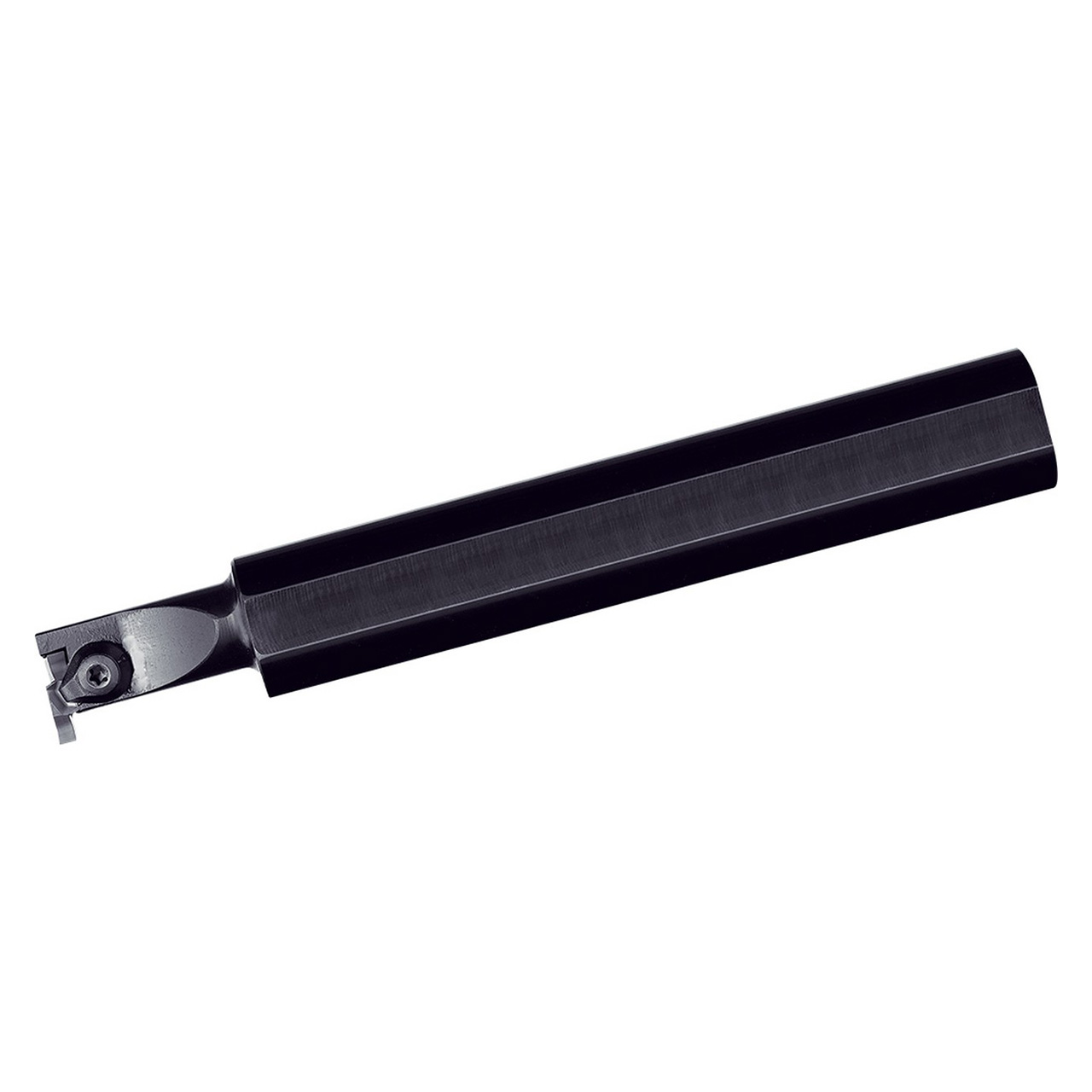

Kyocera Precision Tools THC04741 | GIVR12161SS 0.6299" Diameter x 0.5906" Shank Height Steel Internal Grooving Toolholder

$311.53 $258.57
(You save $52.96)
Brand:
Kyocera Precision Tools
Toolholder Type:
Internal Grooving
Hand of Holder:
Right-Hand
Maximum Depth of Cut (Decimal Inch):
0.0906"
Maximum Depth of Cut (mm):
2.30mm
Minimum Groove Width (Decimal Inch):
0.0394"
Minimum Groove Width (mm):
1.00mm
Maximum Groove Width (Decimal Inch):
0.0394"
Maximum Groove Width (mm):
1.00mm
Toolholder Style:
GIV
Shank Height (Decimal Inch):
0.5906"
Shank Height (mm):
15.00mm
Shank Width/Diameter (Decimal Inch):
0.6299"
Shank Width/Diameter (mm):
16.00mm
Series:
GVIG;Through Coolant=No"
interval quantity:
1
SKU:
23228628
UPC:
Weight:
0.58 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Features:

  • Right-Hand toolholder
  • Application: internal small diameter grooving
  • Top clamp insert holding design
  • Compatible with Right-Hand GVRSS inserts

Product Specifications
EDP NumberTHC04741
Max Depth of Cut (Decimal Inch)0.0906"
Max Depth of Cut (mm)2.30mm
Cutting Width (Decimal Inch)0.0394"
Cutting Width (mm)1.00mm
Cutting Width Minimum (Decimal Inch)0.0394"
Cutting Width Minimum (mm)1.00mm
Cutting Width Maximum (Decimal Inch)0.0394"
Cutting Width Maximum (mm)1.00mm
Connection Diameter (Decimal Inch)0.6299"
Connection Diameter (mm)16.00mm
Minimum Bore Diameter (Decimal Inch)0.4724"
Minimum Bore Diameter (mm)12.00mm
Shank Height (Decimal Inch)0.5906"
Shank Height (mm)15.00mm
ApplicationInternal Grooving | Small Parts Machining
Grooving TypeInternal Grooving
HandRight Hand
Insert Holding MethodTop Clamp
MaterialSteel
