Features:

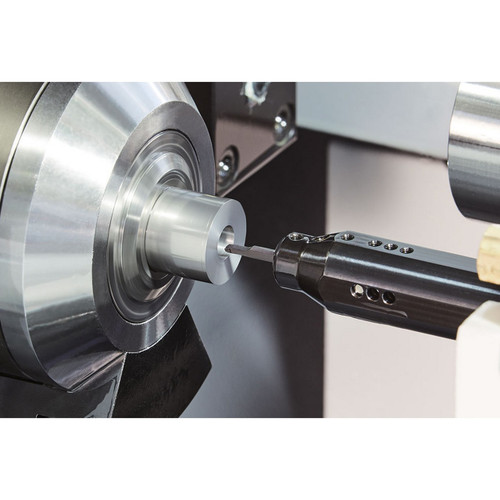

- The EZ Bar system prevents deviation with high-rigidity clamping
- Easy adjustment and high precision for a wide range of applications
- Compatible with EZBR040, EZVBR045040-, EZGR040-, EZFGR040-, EZTR040- style micro bars
Product Specifications
| EDP Number | THC14340 |
| Cutting Diameter Maximum (mm) | 0.1575" |
| Connection Bore Diameter (mm) | 4.00mm |
| Connection Diameter (Decimal Inch) | 0.6299" |
| Connection Diameter (mm) | 16.00mm |
| Shank Height (Decimal Inch) | 0.5906" |
| Shank Height (mm) | 15.00mm |
| Adjustable Bar (Yes/No) | Yes |
| Application | Micro Back Boring | Micro Boring | Micro Internal Face Grooving | Micro Internal Grooving | Micro Internal Profiling | Micro Internal Threading |
| Insert Holding Method | Screw |
| Material | Steel |
| Shank Type | Straight / Cylindrical |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Shank Diameter (mm):
16.00mm
Shank Diameter (Decimal Inch):
0.6299"
Bore Diameter (mm):
4.00mm
Bore Diameter (Decimal Inch):
0.1575"
Material:
Steel"
