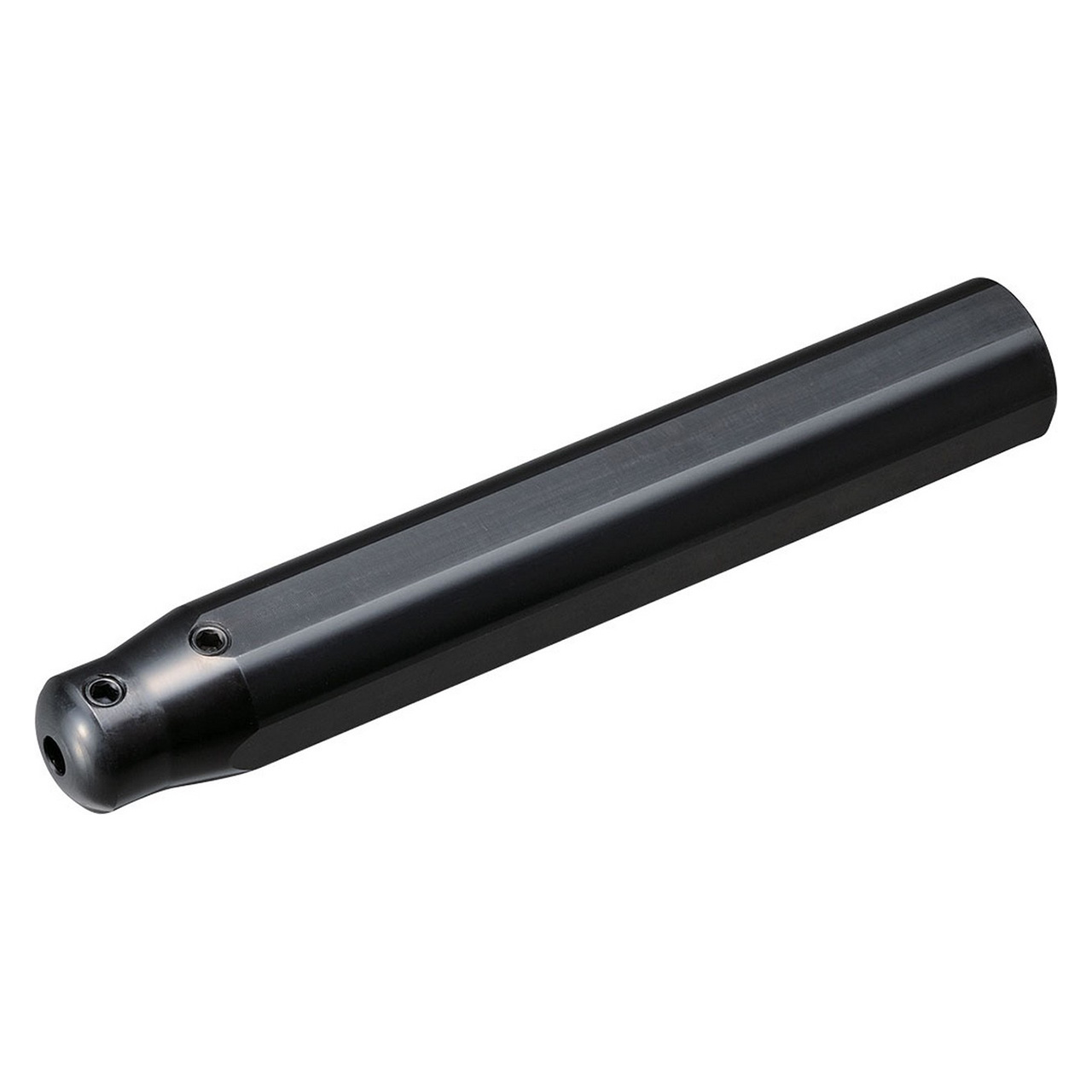

Features:
- The EZ Bar system prevents deviation with high-rigidity clamping
- Non-adjustable cost-effective type for a variety of micro boring applications
- Compatible with EZB..040- style micro bars
Product Specifications
| EDP Number | THC14425 |
| Cutting Diameter Maximum (mm) | 0.1575" |
| Connection Bore Diameter (mm) | 4.00mm |
| Connection Diameter (Decimal Inch) | 0.4724" |
| Connection Diameter (mm) | 12.00mm |
| Shank Height (Decimal Inch) | 0.4331" |
| Shank Height (mm) | 11.00mm |
| Application | Micro Back Boring | Micro Boring | Micro Internal Face Grooving | Micro Internal Grooving | Micro Internal Profiling | Micro Internal Threading |
| Insert Holding Method | Screw |
| Material | Steel |
| Shank Type | Flange Shank |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Kyocera Precision Tools
Shank Diameter (mm):
12.00mm
Shank Diameter (Decimal Inch):
0.4724"
Bore Diameter (mm):
4.00mm
Bore Diameter (Decimal Inch):
0.1575"
Material:
Steel"
