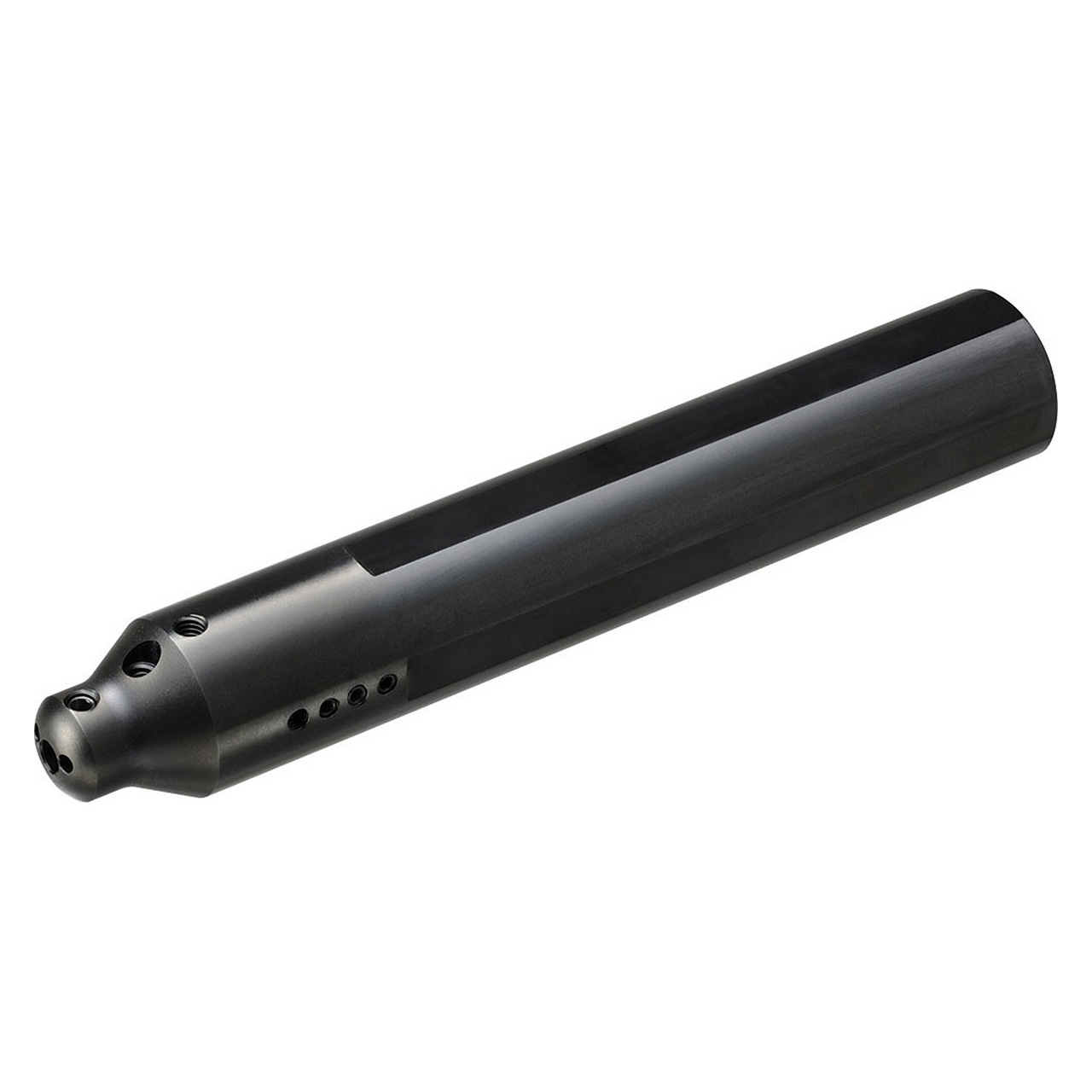

Kyocera Precision Tools THC14486 | EZH03020CT120 0.118" Diameter x 0.748" Shank Height Steel Boring Bar Sleeve

SKU: 23230340 Weight: 0.57 LBS Minimum Purchase: 1 unit
UPC:
$354.05 $293.86
(You save $60.19)
Shipping: Free Shipping

About This Item

Features:

  • The EZ Bar system prevents deviation with high-rigidity clamping
  • EZ Adjust structure with coolant holes
  • Unique head design provides a smooth supply of coolant
  • Easy adjustment and high precision for a wide range of applications
  • Compatible with EZBR030, EZVBR035030-, EZGR030-, EZTR030- style micro bars

Product Specifications
EDP NumberTHC14486
Cutting Diameter Maximum (mm)0.1181"
Connection Bore Diameter (mm)3.00mm
Connection Diameter (Decimal Inch)0.7874"
Connection Diameter (mm)20.00mm
Shank Height (Decimal Inch)0.7480"
Shank Height (mm)19.00mm
Adjustable Bar (Yes/No)Yes
ApplicationMicro Back Boring | Micro Boring | Micro Internal Face Grooving | Micro Internal Grooving | Micro Internal Profiling | Micro Internal Threading
Coolant Through (Yes/No)Yes
Insert Holding MethodScrew
MaterialSteel
Shank TypeStraight / Cylindrical
